2022 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE

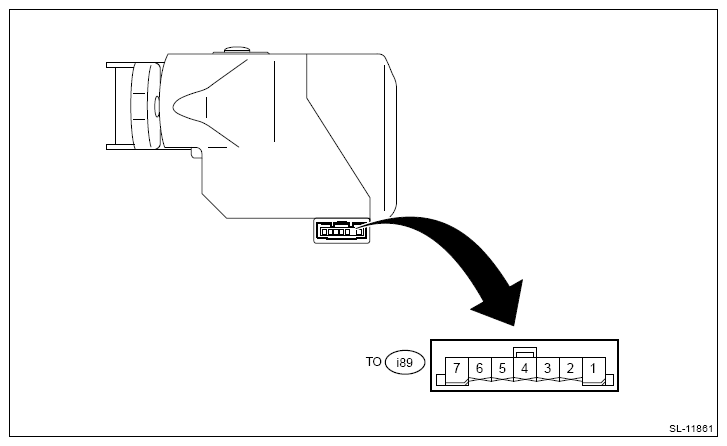

Steering Lock Control Module
| Terminal No. | Contents | Measuring condition | Standard | ||
|---|---|---|---|---|---|
| (i89) No. 1 ββ Chassis ground | Ground | Always(1) | Less than 1 Ξ© | ||
| (i89) No. 2 | - | - | - | ||
| (i89) No. 3 ββ Chassis ground | Steering lock motor drive power supply | Motor not operating β Motor operating | 9.5 V or more β 1 V or less | ||
| (i89) No. 4 ββ Chassis ground | Unlock position output | Lock β Unlock | 9.5 V or more β 1 V or less | ||
| (i89) No. 5 | LIN communication | ACC ON, IGN ON or power OFF, and open/close the door | Pulse generation | ||
| (i89) No. 6 ββ Chassis ground | Ignition power supply | Ignition switch ON(1) | 9.5 V or more | ||
| (i89) No. 7 ββ Chassis ground | Battery power supply | Always(1) | 9.5 V or more | ||
|
|||||
