Select Cable: Removal
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Release the shift lock and shift the select lever to the "N range". Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL
- Remove the center exhaust cover.
H4DO model:
Ref. to EXHAUST (H4DO)>REAR EXHAUST PIPE>REMOVAL .
H4DOTC model:

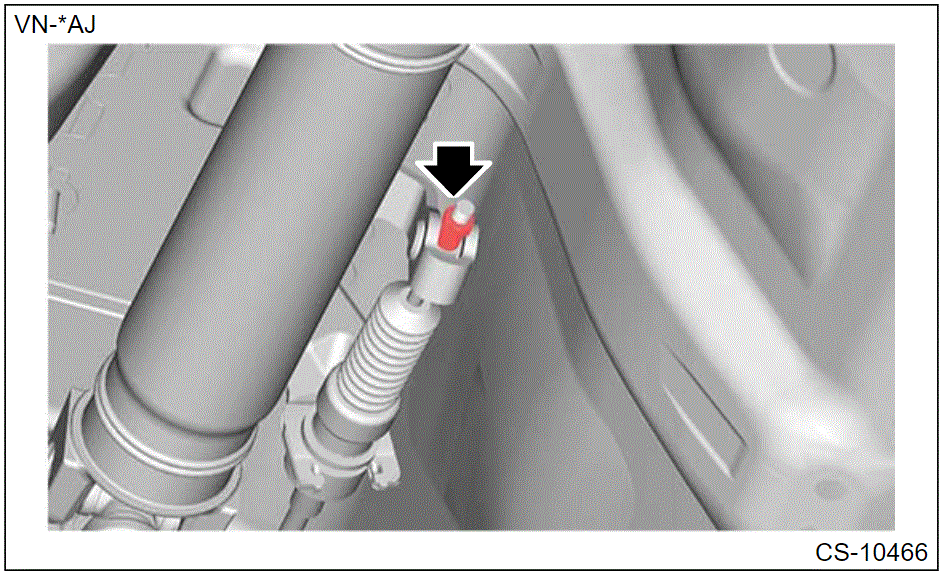

- Disconnect the select cable from the transmission main body.
- Remove the adjusting nut (rear).

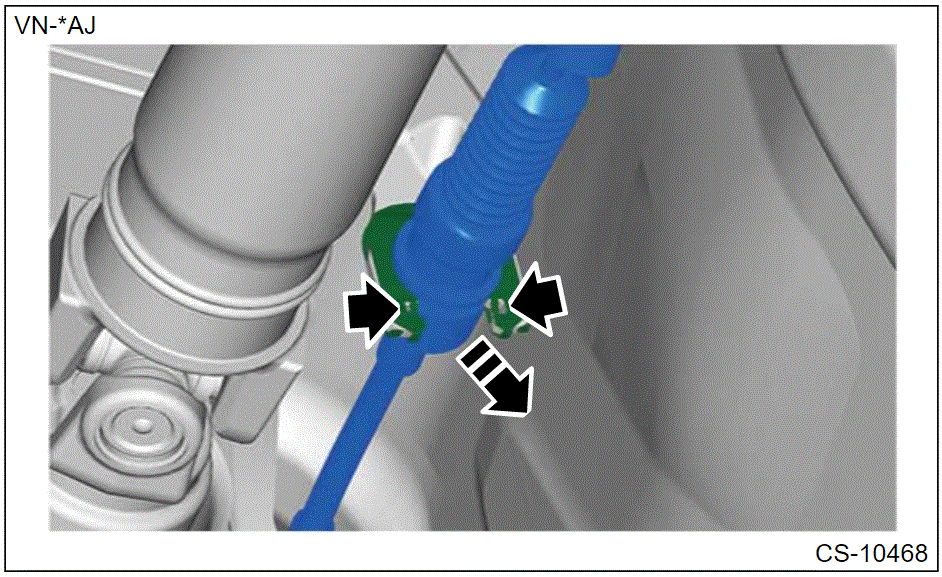

- Raise the claw of clamp and remove the select cable together with the clamp.
- Remove the clamp from the select cable.
- Remove the cable plate.
