Select Cable: Adjustment
- Release the shift lock and shift the select lever to the "N range". Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL
- Remove the center exhaust cover.
H4DO model:
Ref. to EXHAUST (H4DO)>REAR EXHAUST PIPE>REMOVAL .

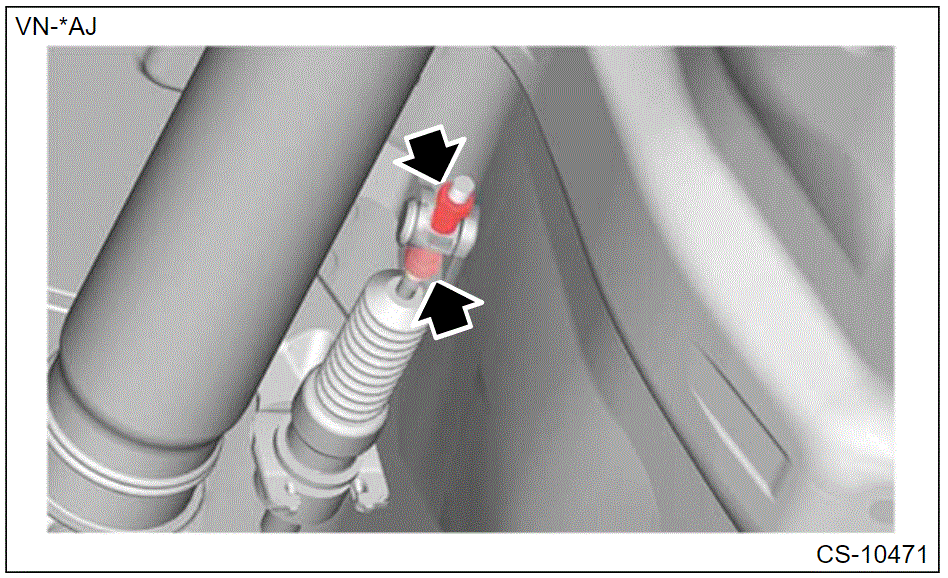

- Loosen the adjusting nut (front) and adjusting nut (rear).

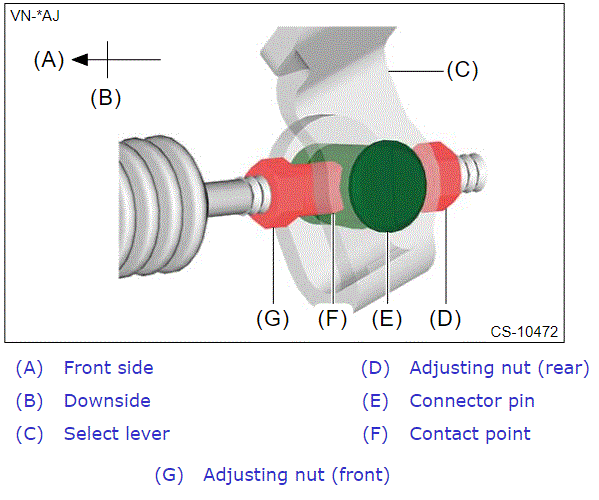

- Turn the adjusting nut (front) until it lightly touches the connector pin.
- While holding the adjusting nut (front) in place, tighten the adjusting nut (rear).
Tightening torque:
7.5 N.m (0.8 kgf.m, 5.5 ft.lb)
- After the completion of adjustment, check that the select lever operates normally at all ranges.
