Inspection Mode T
| DTC | Description and trouble part | Condition | Number of driving cycles on the detecting condition |
|---|---|---|---|
| P000A | "A" CAMSHAFT POSITION SLOW RESPONSE BANK 1 | [Engine Coolant Temperature 1]: 70°C (158°F) or more | 2 |
| P000B | "B" CAMSHAFT POSITION SLOW RESPONSE BANK 1 | 2 | |
| P000C | "A" CAMSHAFT POSITION SLOW RESPONSE BANK 2 | 2 | |
| P000D | "B" CAMSHAFT POSITION SLOW RESPONSE BANK 2 | 2 | |
| P0011 | "A" CAMSHAFT POSITION - TIMING OVER-ADVANCED OR SYSTEM PERFORMANCE BANK 1 | 2 | |
| P0014 | "B" CAMSHAFT POSITION - TIMING OVER-ADVANCED OR SYSTEM PERFORMANCE BANK 1 | 2 | |
| P0021 | "A" CAMSHAFT POSITION - TIMING OVER-ADVANCED OR SYSTEM PERFORMANCE BANK 2 | 2 | |
| P0024 | "B" CAMSHAFT POSITION - TIMING OVER-ADVANCED OR SYSTEM PERFORMANCE BANK 2 | 2 |
When performing inspection mode T on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.
- Check that the battery voltage is 12 V or more and fuel remains approx. half [20 - 40 L (5.3 - 10.6 US gal, 4.4 - 8.8 Imp gal)].
- Using the Subaru Select Monitor, perform the clear memory of [Engine Control System]. Ref. to COMMON (DIAG)>CLEAR MEMORY .

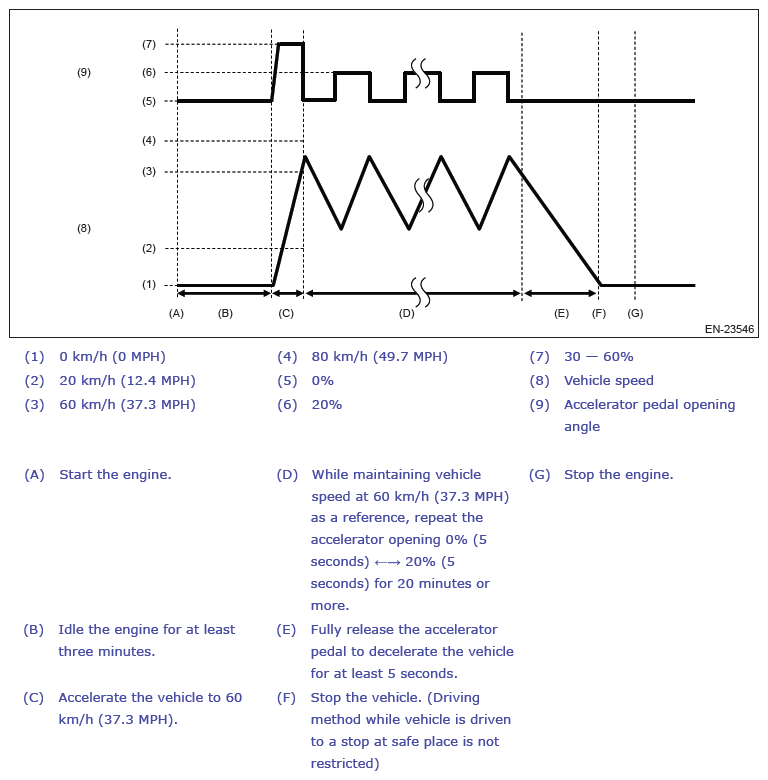

- Drive according to the drive pattern described below.NOTE:
In pattern (D), it is acceptable to stop the vehicle depending on the traffic conditions. Drive the vehicle with the accelerator opening angle of 0% (5 seconds) - 20% (5 seconds) for an accumulated duration of 20 minutes or more.
- Read the temporary code using the Subaru Select Monitor or general scan tool. Ref. to COMMON (DIAG)>DIAGNOSTIC TROUBLE CODE (DTC) .
