Select Lever
- Apply grease to each moving parts.
Grease:
Multemp D No. 2 or equivalent
- Install the detent rod and the detent spring.
- Install the plate guide.
- Install the arm.
- Install the lever.
- Install the guide pin.
- Install the clamp.
- Install the guide pin.

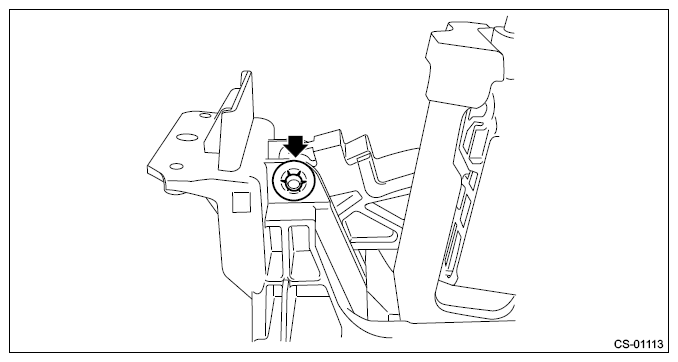

- Install a new nut.
- Install the control shaft.

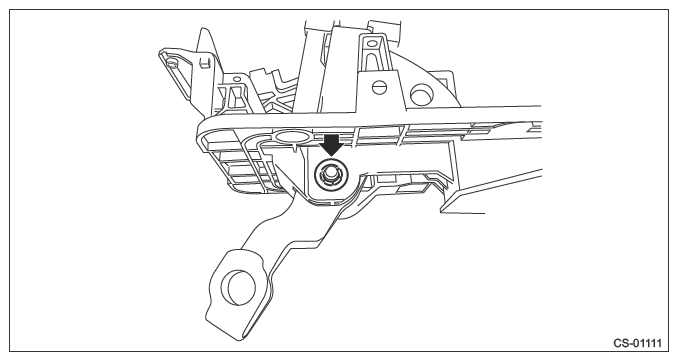

- Install a new nut.
- Install the solenoid unit. Ref. to CONTROL SYSTEMS>AT SHIFT LOCK SOLENOID AND "P" RANGE SWITCH> INSTALLATION>SOLENOID UNIT .
- Install the harness.
- Install the connector.
- Install the gasket.
- Install the spacer.
- Check the select lever operation condition.
