2022 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Select Lever: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

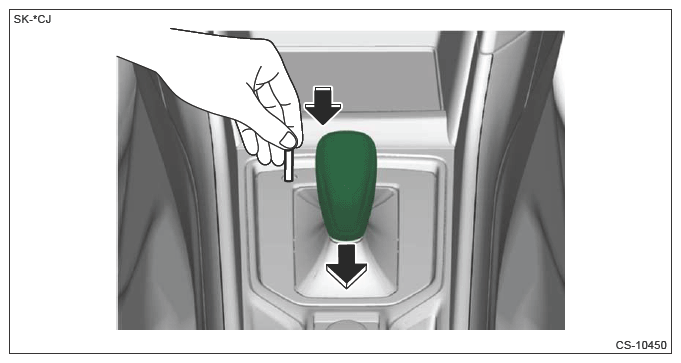

  2. Release the shift lock using a screwdriver, etc. and shift the select lever to the "N range".
    G13868655Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the center exhaust cover. Ref. to EXHAUST (H4DO)>REAR EXHAUST PIPE>REMOVAL .
    NOTE: Remove the center exhaust cover only.
  4. Disconnect the select cable from the transmission main body.
    CAUTION: Do not apply excessive load while holding the part (a).
    G13591814Courtesy of SUBARU OF AMERICA, INC.
    G13225470Courtesy of SUBARU OF AMERICA, INC.

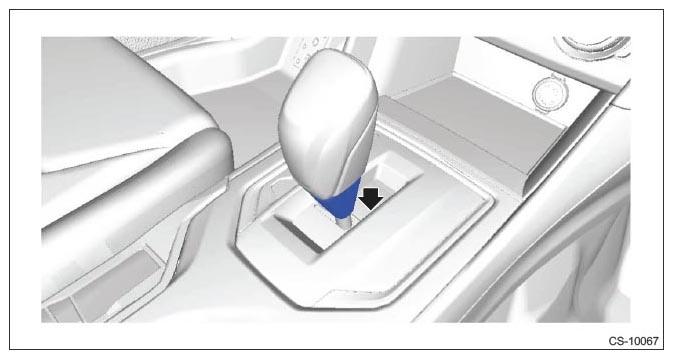

  5. Lower the grip cover vertically. (Model with gate shifter)
    G11255292Courtesy of SUBARU OF AMERICA, INC.

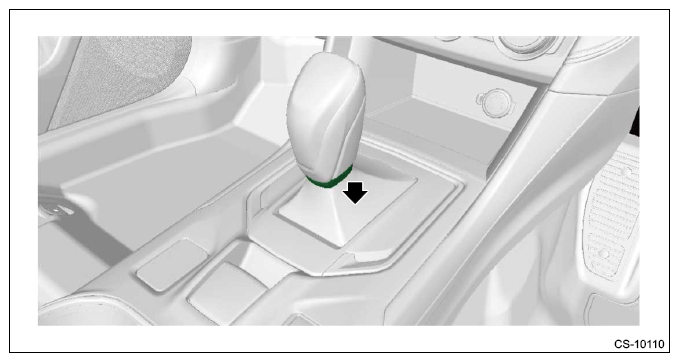

  6. Lower the boot vertically. (Model with boot shifter)
    G13225472Courtesy of SUBARU OF AMERICA, INC.

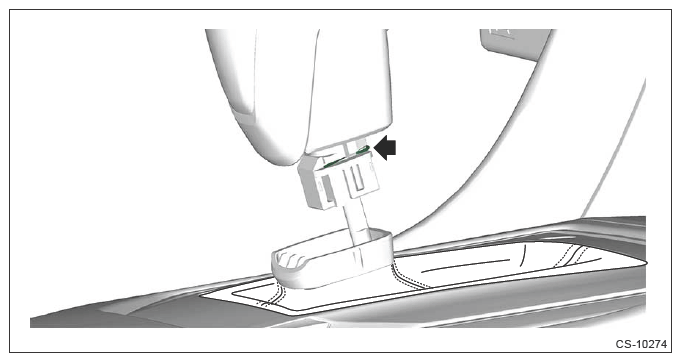

  7. Remove the clamp.
    G13225473Courtesy of SUBARU OF AMERICA, INC.

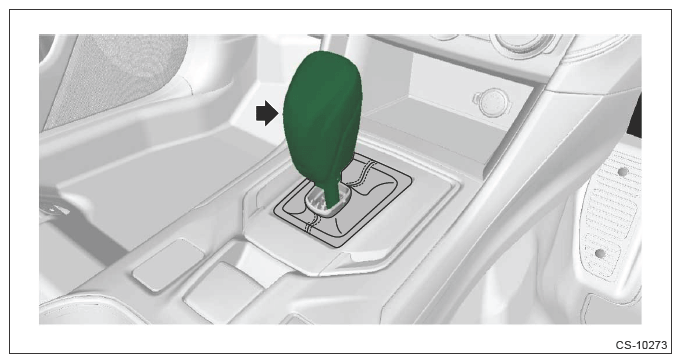

  8. Remove the grip.
    G13225474Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the duct console center. Ref. to AIR CONDITIONER>AIR VENT DUCT>REMOVAL>CONSOLE DUCT>CENTER .

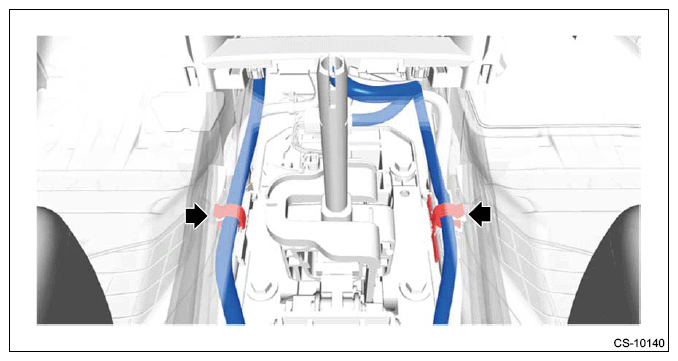

  10. Remove the harness.
    G13225475Courtesy of SUBARU OF AMERICA, INC.

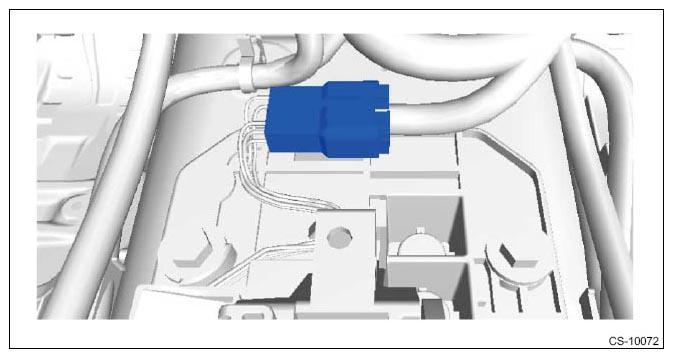

  11. Disconnect the connector.
    G11255299Courtesy of SUBARU OF AMERICA, INC.

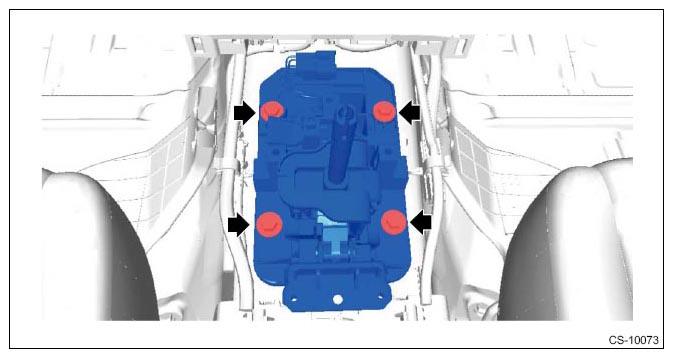

  12. Remove the select lever.
    CAUTION: Be careful not to apply a load to the select cable.
    G11255300Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the select cable. Ref. to CONTROL SYSTEMS>SELECT CABLE>REMOVAL .
