2022 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Data Link Connector: Note

This connector is used for Subaru Select Monitor.

For detailed connection procedures, refer to "Application help".

CAUTION:
  • Do not connect any tools other than Subaru Select Monitor or general scan tool because the circuit for Subaru Select Monitor may be damaged.

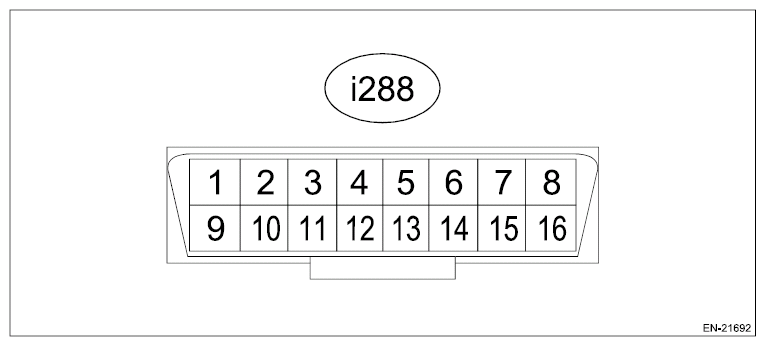

G12400527Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Contents Measuring condition Standard
(i288) No. 1 - - -
(i288) No. 2 - - -
(i288) No. 3 - - -
(i288) No. 4 ←→ Chassis ground GND Always 10 Ξ© or less
(i288) No. 5 ←→ Chassis ground GND Always 10 Ξ© or less
(i288) No. 6 CAN-H - -
(i288) No. 7 - - -
(i288) No. 8 ←→ Chassis ground Ignition power supply When ignition switch is ON Battery voltage
(i288) No. 9 - - -
(i288) No. 10 - - -
(i288) No. 11 - - -
(i288) No. 12 - - -
(i288) No. 13 - - -
(i288) No. 14 CAN-L - -
(i288) No. 15 - - -
(i288) No. 16 ←→ Chassis ground Battery power supply Always Battery voltage
