2022 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Fuel Sub Level Sensor: Inspection
- Check that the fuel sub level sensor has no damage.

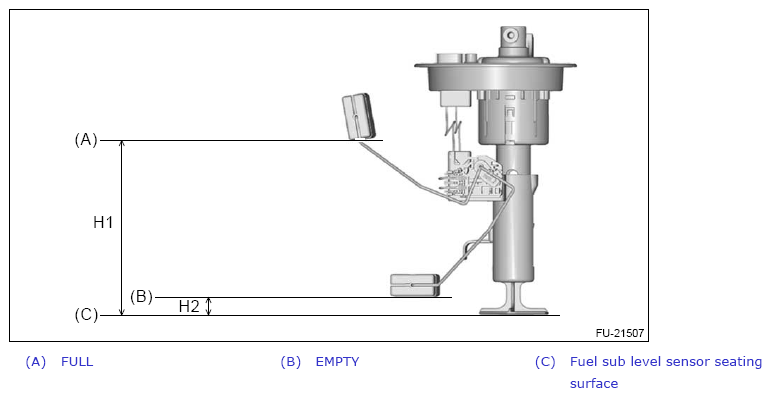

- Check the fuel sub level sensor float position.

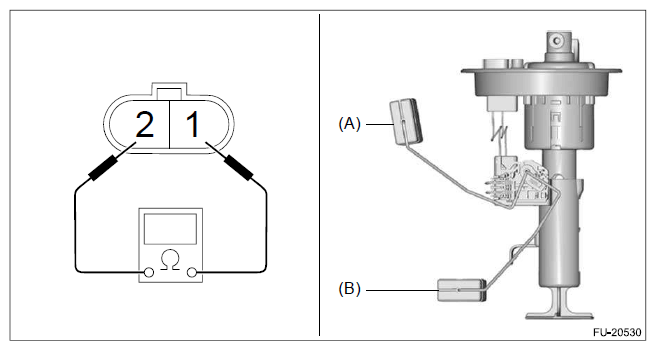

Float position Standard FULL - Fuel sub level sensor seating surface H1 145.1 Β± 4.5 mm (5.713 Β± 0.177 in) EMPTY - Fuel sub level sensor seating surface H2 14.6 Β± 4.5 mm (0.575 Β± 0.177 in) - Check the resistance between fuel sub level sensor terminals by the connector on top of the fuel sub level sensor.
| Float position | Terminal No. | Standard |
|---|---|---|
| FULL (A) | 1 and 2 | 8.7 Β±1.0 Ξ© |
| EMPTY (B) | 176.6 Β±2.0 Ξ© |
