2022 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Fuel Level Sensor: Inspection
- Check that the fuel level sensor has no damage.

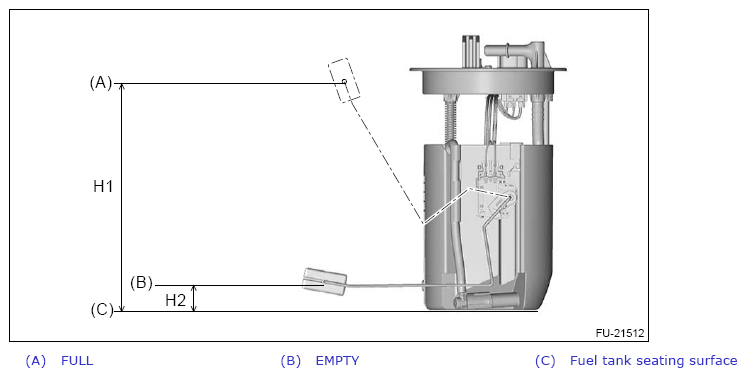

- Measure the fuel level sensor float position.NOTE: When inspecting the fuel level sensor, perform the work with the sensor installed to the fuel pump.

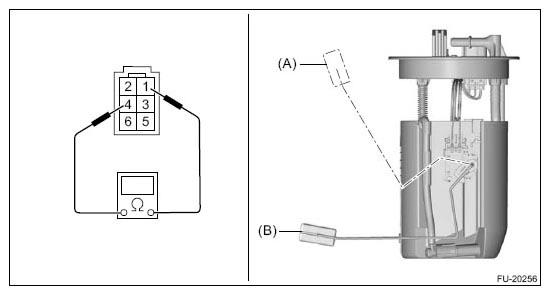

Float position Standard FULL - Fuel tank seating surface H1 190.7Β±3.5 mm (7.508Β±0.138 in) EMPTY - Fuel tank seating surface H2 24.6Β±3.5 mm (0.969Β±0.138 in) - Check the resistance between fuel level sensor terminals by the connector on top of the fuel pump.
| Float position | Terminal No. | Standard |
|---|---|---|
| FULL (A) | 1 and 4 | 8.7Β±1.0 Ξ© |
| EMPTY (B) | 233.4Β±2.5 Ξ© |
