2022 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Fuel Injector: Replacement

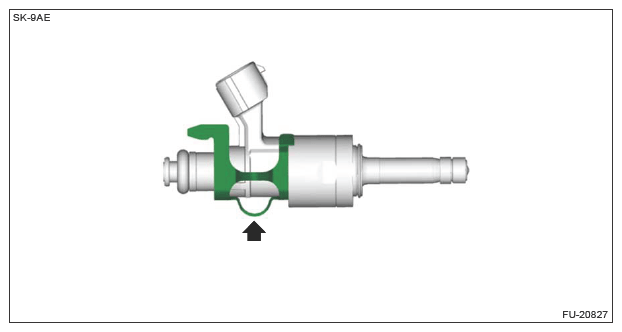

  1. Remove the fuel injector holder.
    G13223877Courtesy of SUBARU OF AMERICA, INC.

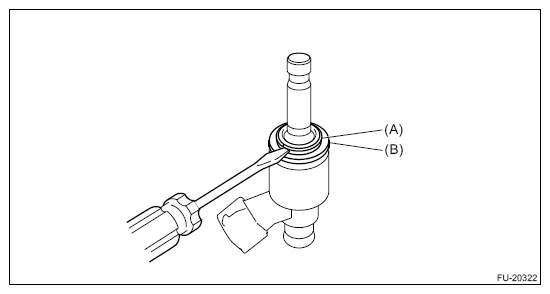

  2. Remove the C-ring (A) and slider washer (B).
    G11252826Courtesy of SUBARU OF AMERICA, INC.

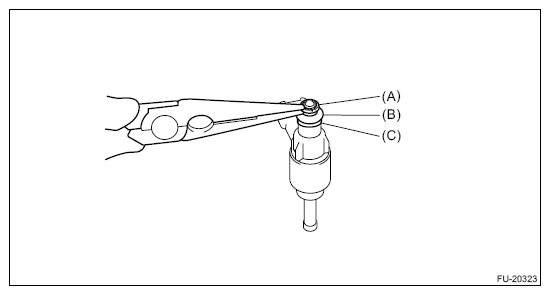

  3. Remove the stopper ring (A).
  4. Remove the O-ring (B) and backup ring (C).
    G11252827Courtesy of SUBARU OF AMERICA, INC.

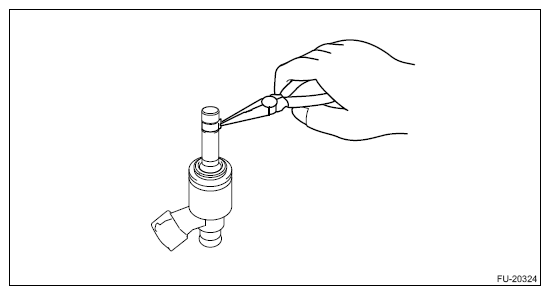

  5. Gradually expand the fuel injector seal and remove the fuel injector seal.
    CAUTION:
    • Be careful not to apply too much force when pinching the fuel injector seal, or the fuel injector groove may be damaged.
    • If the tip of the fuel injector assembly is hit or the assembly is dropped, replace the fuel injector assembly with a new part.
    G11252828Courtesy of SUBARU OF AMERICA, INC.
  6. Install the fuel injector seal.

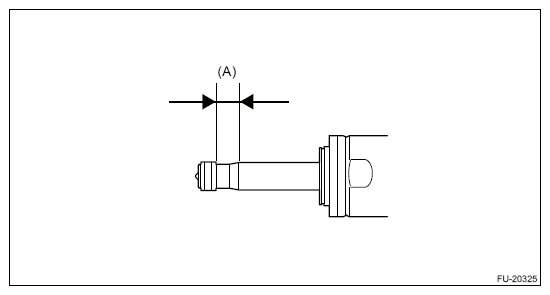

    1. Remove carbon from area (A) shown in the figure (sides of fuel injector and the seal groove).
      CAUTION:
      • Do not attempt to clean the tip.
      • Do not use a wire-brush.
      • If the tip of the fuel injector assembly is hit or the assembly is dropped, replace the fuel injector assembly with a new part.
      G11252829Courtesy of SUBARU OF AMERICA, INC.

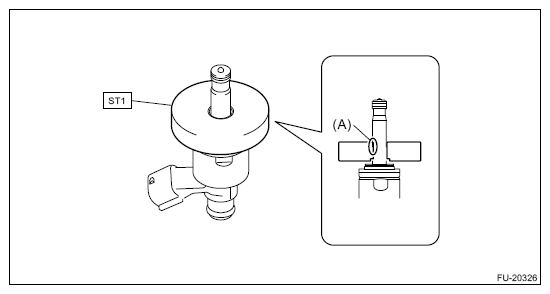

    2. Set the ST1 on the fuel injector so that the tapered side (A) (with ST number printed) faces toward the tip of the fuel injector.

      Preparation tool:

      ST1: ADJUSTER (18271AA020)

      G11252830Courtesy of SUBARU OF AMERICA, INC.
    3. Install new fuel injector seal (A) on ST2.
      CAUTION: When setting the fuel injector seal on the ST2, be careful not to set it obliquely, or the seal is stretched and become hard to be fixed.
