2022 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Crankshaft Position Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the collector cover. Ref. to INTAKE (INDUCTION) (H4DO)>COLLECTOR COVER>REMOVAL .
  3. Remove the clip from the air intake boot, and loosen the clamp.
    G13223823Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13223824Courtesy of SUBARU OF AMERICA, INC.

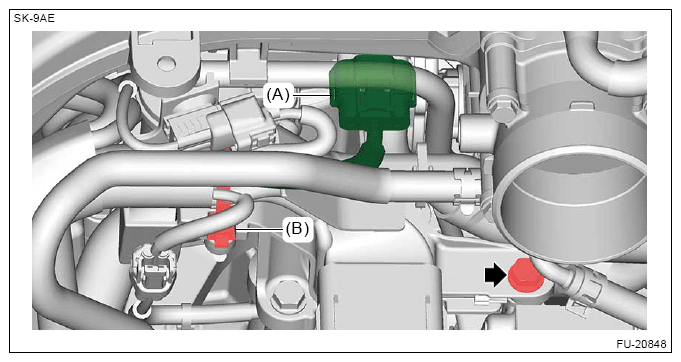

  5. Disconnect the connector (A).
  6. Remove the bolt securing the engine ground and the harness case.
  7. Remove the clip (B) from the engine wiring harness bracket.
    G13223951Courtesy of SUBARU OF AMERICA, INC.

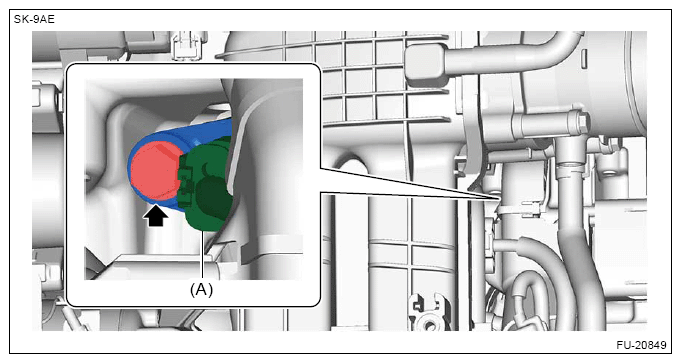

  8. Disconnect the connector (A) and remove the crankshaft position sensor.
    CAUTION: Do not apply excessive force to the harness. Otherwise the harness may be damaged.
G13223952Courtesy of SUBARU OF AMERICA, INC.
