07 Starter Circuit Failure
Detecting condition:
When judging that the engine does not start running when the engine is restarted.
Trouble symptom:
After the engine stops, a buzzer sounds and the Auto Start Stop is canceled.

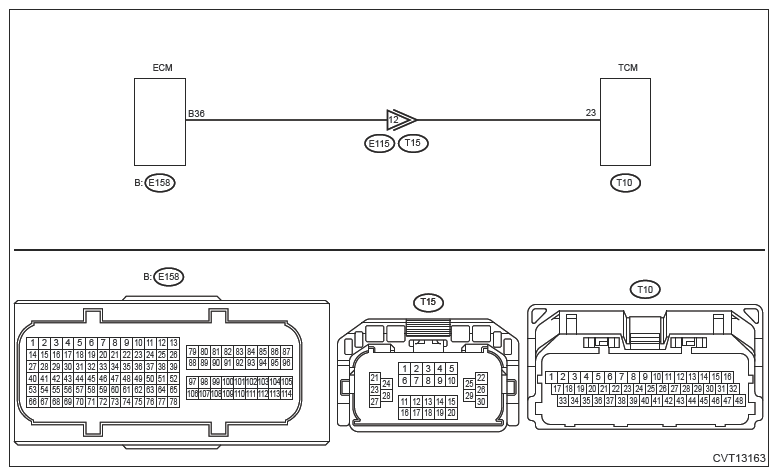

Wiring diagram:
Auto Start Stop Ref. to WIRING SYSTEM>AUTO START STOP .
- CHECK ENGINE START FAILURE
.
Start the engine using the ignition key or push button ignition switch.
Does the engine start?
Yes : Go to 2.
No : Inspect according to the diagnostics with phenomenon. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>DIAGNOSTICS WITH PHENOMENON .
- CHECK Auto Start Stop STATUS
.
- Using the Subaru Select Monitor, perform [Engine stop control] in the active test to stop the engine. Ref. to AUTO START STOP (DIAGNOSTICS)>ACTIVE TEST .
- Operate the Auto Start Stop cancel switch to restart the engine.
Does the starter motor operate?
Yes : Go to 4.
No : Go to 3.
- CHECK Auto Start Stop STATUS
.
- Using the Subaru Select Monitor, perform [Engine stop control] in the active test to stop the engine. Ref. to AUTO START STOP (DIAGNOSTICS)>ACTIVE TEST .
- Read the data of [ECM Restart Request Signal State] using Subaru Select Monitor. Ref. to AUTO START STOP (DIAGNOSTICS)>DATA MONITOR .
- Operate the Auto Start Stop cancel switch to restart the engine.
Does the display of [ECM Restart Request Signal State] change to ON at restarting?
Yes : Go to 4.
No : Check the harness between TCM connector and ECM connector.
(T10) No. 23 - (E158) No. 36
- CHECK DTC
.
Read the DTC of [Engine] using the Subaru Select Monitor. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>DIAGNOSTIC TROUBLE CODE (DTC) .
Are any DTCs displayed?
Yes : Perform the diagnosis according to the DTC. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>DIAGNOSTIC TROUBLE CODE (DTC)>LIST .
No : Inspect according to the diagnostics with phenomenon. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>DIAGNOSTICS WITH PHENOMENON .
