2022 Subaru Crosstrek Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE

Throttle Body

Impreza model

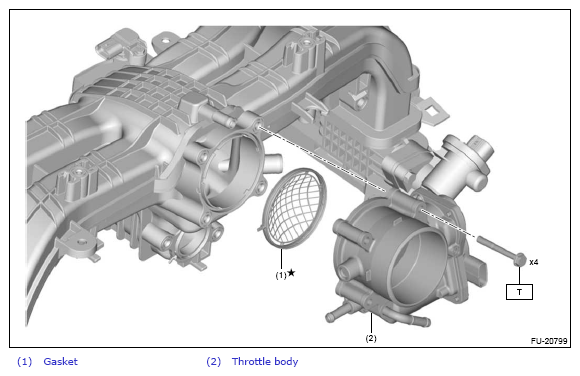

Fig 1: Throttle Body Components Location (Impreza Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 8 (0.8, 5.9)
2.0 L Crosstrek model

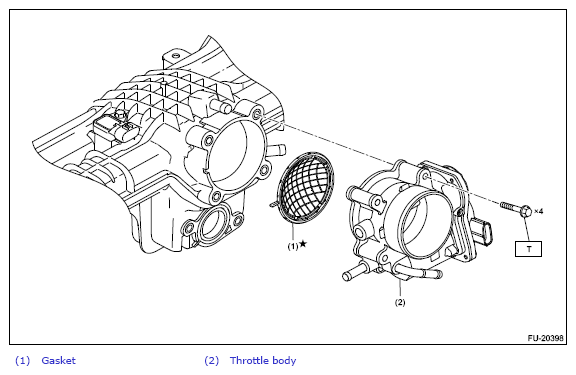

Fig 2: Throttle Body Components Location (2.0 L Crosstrek Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 8 (0.8, 5.9)
2.5 L Crosstrek model

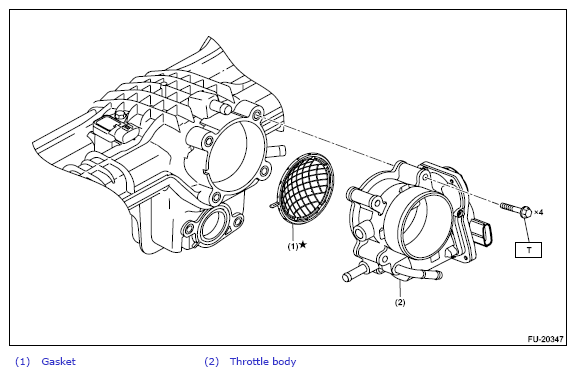

Fig 3: Throttle Body Components Location (2.5 L Crosstrek Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 8 (0.8, 5.9)
