2022 Subaru Crosstrek Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE

Fuel Line

IMPREZA MODEL
- Fuel line 1

  Fig 1: Fuel Line 1 Components Location (Impreza Model)
  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T: 18 (1.8, 13.3)
- Fuel line 2

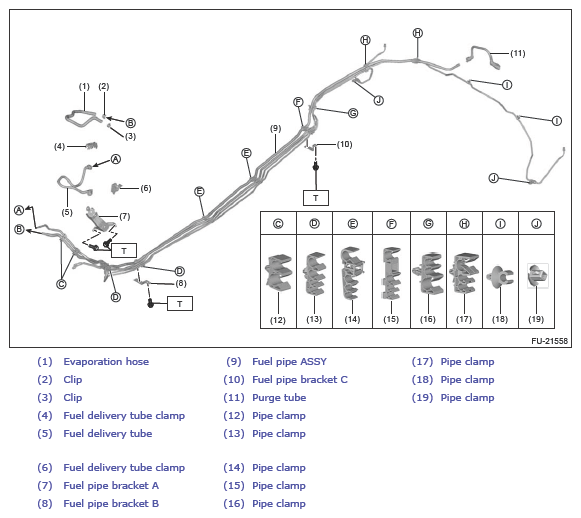

  Fig 2: Fuel Line 2 Components Location (Impreza Model)
  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T: 8 (0.8, 5.9)
CROSSTREK MODEL
- Fuel line 1

  Fig 3: Fuel Line 1 Components Location (Crosstrek Model)
  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T: 18 (1.8, 13.3)
- Fuel line 2

  Fig 4: Fuel Line 2 Components Location (Crosstrek Model)
  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T: 8 (0.8, 5.9)
