2022 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE

Select Lever: Disassembly

NOTE: The "P range" switch and the manual mode switch are integrated with the guide plate.

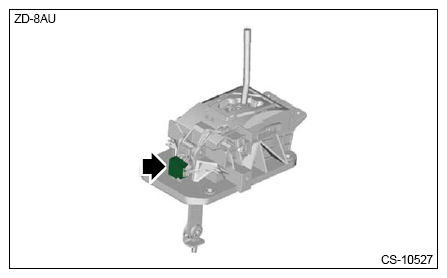

  1. Remove the connector.
    G16525442Courtesy of SUBARU OF AMERICA, INC.

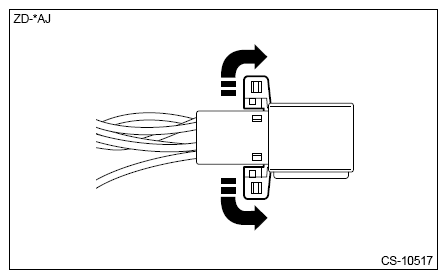

  2. Unlock the connector.
    G16525443Courtesy of SUBARU OF AMERICA, INC.

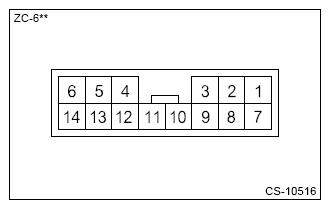

  3. Pull out the shift lock solenoid terminal using a flat tip screwdriver, etc.
    G16525444Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Wiring color
    4 Blue
    5 Black
  4. Pull out the manual mode switch terminal using a flat tip screwdriver, etc.
    G16525444Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Wiring color
    10 White
    11 Black

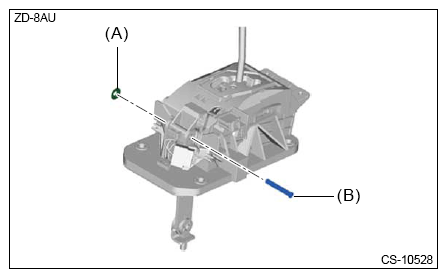

  5. Remove the clamp push nut and then remove the shaft guide pin.
    G16525446Courtesy of SUBARU OF AMERICA, INC.
    (A) Clamp push nut
    (B) Shaft guide pin

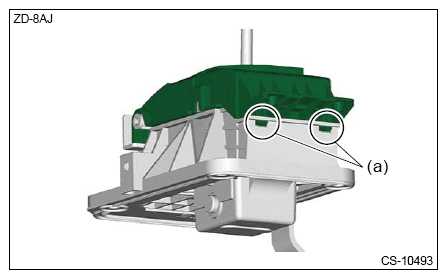

  6. Remove the guide plate.
    NOTE: Release the claw (a).
    G16525447Courtesy of SUBARU OF AMERICA, INC.

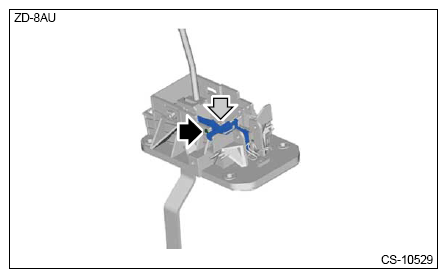

  7. Remove the pin, and then remove the lock plate and the shift lock solenoid as a unit.
    G16525448Courtesy of SUBARU OF AMERICA, INC.

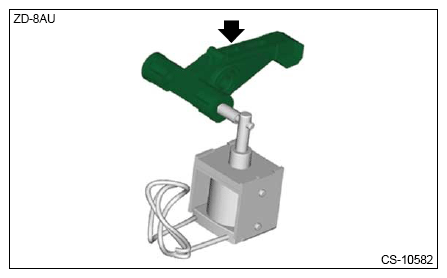

  8. Remove the lock plate from the shift lock solenoid.
    G16525449Courtesy of SUBARU OF AMERICA, INC.

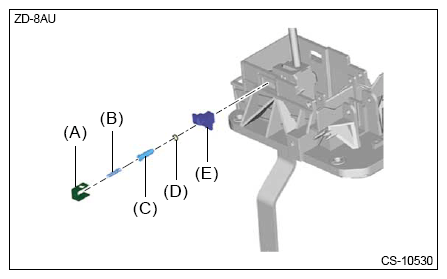

  9. Remove the clamp, spring, rod, cushion, and bushing.
    G16525450Courtesy of SUBARU OF AMERICA, INC.
    (A) Clamp
    (B) Spring
    (C) Rod
    (D) Cushion
    (E) Bushing

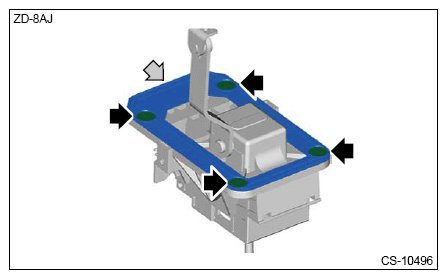

  10. Remove the spacer and gasket.
    G16525451Courtesy of SUBARU OF AMERICA, INC.

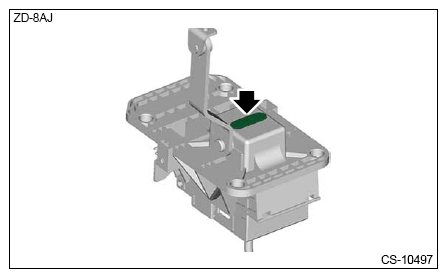

  11. Remove the grommet.
    G16525452Courtesy of SUBARU OF AMERICA, INC.

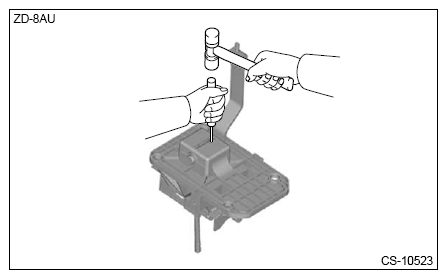

  12. Use a pin punch and a hammer to remove the spring pin.
    G16525453Courtesy of SUBARU OF AMERICA, INC.

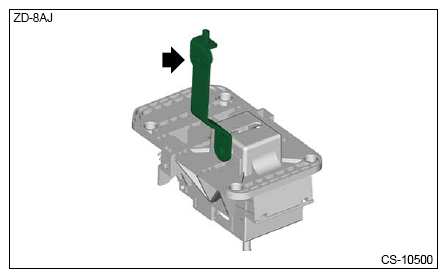

  13. Remove the arm.
    G16525454Courtesy of SUBARU OF AMERICA, INC.

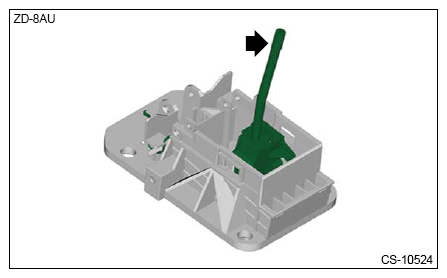

  14. Remove the arm bracket and lever as a unit.
    G16525455Courtesy of SUBARU OF AMERICA, INC.

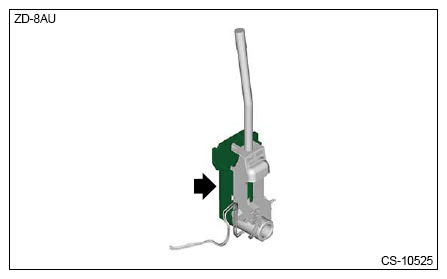

  15. Remove the arm bracket.
    G16525456Courtesy of SUBARU OF AMERICA, INC.

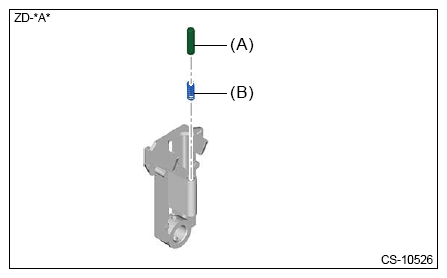

  16. Remove the rod and spring.
    G16525457Courtesy of SUBARU OF AMERICA, INC.
    (A) Rod
    (B) Spring

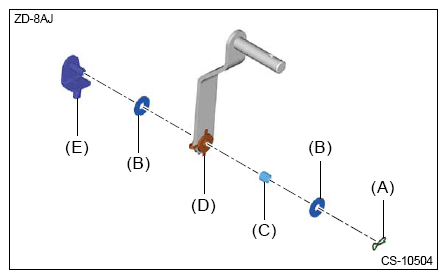

  17. Remove the snap pin, washers, spacer, bushing, and swivel from the arm.
G16525458Courtesy of SUBARU OF AMERICA, INC.
(A) Snap pin
(B) Washer
(C) Spacer
(D) Bushing
(E) Swivel
