2022 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE
Select Lever Rod: Installation

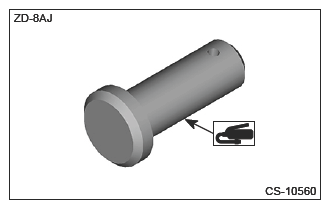

- Apply grease to the shaft.
Preparation items:
Grease: NIPPON GREASE NIGTIGHT LTS No. 2 or equivalent
- Connect the select lever rod with the shaft and the wave washer.
- Install the snap pin.
- Adjust the select lever. Ref. to CONTROL SYSTEMS>SELECT LEVER>ADJUSTMENT .
- Install the center exhaust pipe. Ref. to EXHAUST (H4DO)>CENTER EXHAUST PIPE>INSTALLATION .
