2022 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE

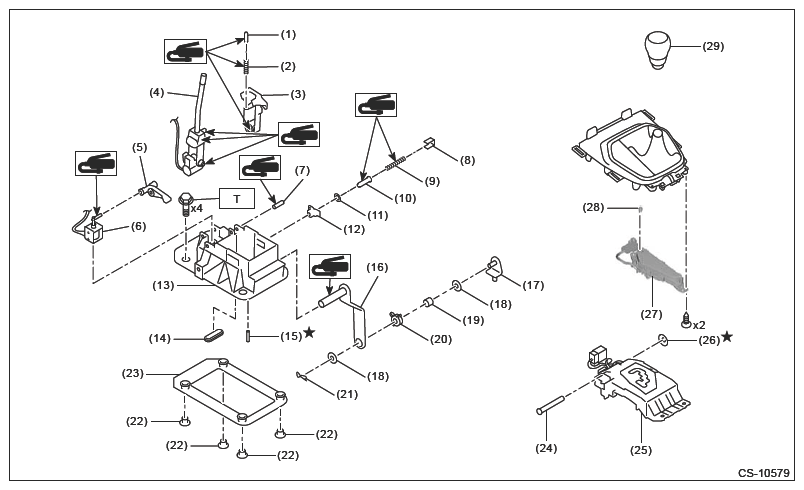

Select Lever
| (1) | Rod |
| (2) | Spring |
| (3) | Arm bracket |
| (4) | Lever |
| (5) | Lock plate |
| (6) | Shift lock solenoid |
| (7) | Pin |
| (8) | Clamp |
| (9) | Spring |
| (10) | Rod |
| (11) | Cushion |
| (12) | Bushing |
| (13) | Plate |
| (14) | Grommet |
| (15) | Spring pin |
| (16) | Arm |
| (17) | Swivel |
| (18) | Washer |
| (19) | Spacer |
| (20) | Bushing |
| (21) | Snap pin |
| (22) | Spacer |
| (23) | Gasket |
| (24) | Shaft guide pin |
| (25) | Guide plate |
| (26) | Clamp push nut |
| (27) | Indicator |
| (28) | Button cover |
| (29) | Grip |
Tightening torque: N.m (kgf-m, ft-lb)
T: Ref. to CONTROL SYSTEMS>SELECT LEVER>INSTALLATION .
