CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .

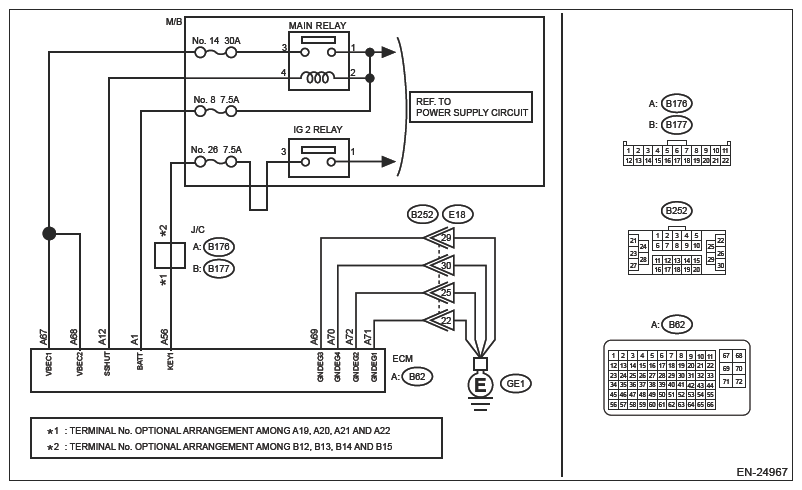

Wiring diagram: Engine Electrical System Ref. to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

CHECK MAIN RELAY .
1. Turn the ignition switch to OFF.
2. Remove the main relay.
3. Check the main relay. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>MAIN RELAY>INSPECTION .
  Is the check result OK?

  Yes: Go to 2.

  No: Replace the main relay. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>MAIN RELAY .
CHECK GROUND CIRCUIT FOR ECM .
1. Disconnect the connector from ECM.
2. Measure the resistance of harness between ECM connector and engine ground.
  Connector & terminal

  (B62) No. 69 - Engine ground:

  (B62) No. 70 - Engine ground:

  (B62) No. 71 - Engine ground:

  (B62) No. 72 - Engine ground:

  Is the resistance less than 5 Ω?

  Yes: Go to 3.

  No: Repair the following item.
  - Open circuit of harness between ECM connector and engine ground
  - Poor contact of coupling connector
CHECK INPUT VOLTAGE OF ECM (SHORT TO GROUND) .
1. Turn the ignition switch to ON.
2. Measure the voltage between ECM connector and engine ground.
  Connector & terminal

  (B62) No. 1 (+) - Engine ground (-):

  (B62) No. 56 (+) - Engine ground (-):

  Is the voltage 10 V or more?

  Yes: Go to 4.

  No: Repair the open or ground short in the harness of power supply circuit.
CHECK M/B (MAIN RELAY) INPUT VOLTAGE .
Measure the voltage between M/B (main relay) terminal and engine ground.

Terminals

No. 1 (+) - Engine ground (-):

No. 2 (+) - Engine ground (-):

Is the voltage 10 V or more?

Yes: Go to 5.

No: Repair the open or ground short in the harness of power supply circuit.
CHECK INPUT VOLTAGE OF ECM .
1. Turn the ignition switch to OFF.
2. Install the main relay.
3. Measure the voltage between ECM connector and engine ground.
  Connector & terminal

  (B62) No. 12 (+) - Engine ground (-):

  Is the voltage 10 V or more?

  Yes: Go to 6.

  No: Repair the open circuit of harness between ECM connector and M/B (main relay) terminal.
CHECK INPUT VOLTAGE OF ECM .
1. Connect the connector to ECM.
2. Turn the ignition switch to ON.
3. Measure the voltage between ECM connector and engine ground.
  Connector & terminal

  (B62) No. 67 (+) - Engine ground (-):

  (B62) No. 68 (+) - Engine ground (-):

  Is the voltage 10 V or more?

  Yes: Check the starter motor circuit. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>DIAGNOSTICS WITH PHENOMENON>STARTER MOTOR CIRCUIT .

  No: Repair the following item.
  - Open circuit of harness between ECM connector and M/B (main relay)
  - Poor contact of M/B (main relay)
  - Blown out of fuse
  - Poor contact of ECM connector
NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .
