2022 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE

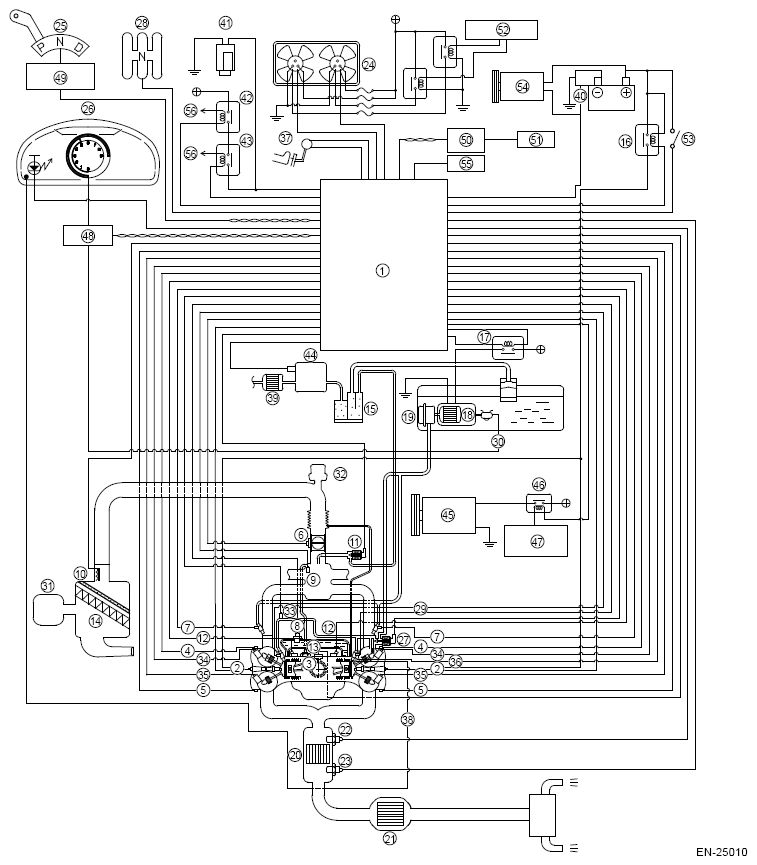

System Block Diagram
| (1) | Engine control module (ECM) |
| (2) | Ignition coil |
| (3) | Crankshaft position sensor |
| (4) | Intake camshaft position sensor |
| (5) | Exhaust camshaft position sensor |
| (6) | Electronic throttle control sensor |
| (7) | Fuel injector (for port injection) |
| (8) | Engine coolant temperature sensor |
| (9) | Manifold absolute pressure sensor |
| (10) | Mass air flow and intake air temperature sensor |
| (11) | Purge control solenoid valve |
| (12) | Knock sensor |
| (13) | PCV valve |
| (14) | Air cleaner |
| (15) | Canister |
| (16) | Ignition relay |
| (17) | Fuel pump relay |
| (18) | Fuel filter |
| (19) | Fuel pump |
| (20) | Front catalytic converter |
| (21) | Rear catalytic converter |
| (22) | Front oxygen (A/F) sensor |
| (23) | Rear oxygen sensor |
| (24) | Radiator fan |
| (25) | Inhibitor switch (AT model) |
| (26) | Combination meter |
| (27) | High-pressure fuel pump |
| (28) | Neutral switch (MT model) |
| (29) | Fuel injector (for cylinder direct injection) |
| (30) | Fuel level sensor |
| (31) | Resonator 1 |
| (32) | Resonator 2 |
| (33) | Fuel pressure sensor |
| (34) | Intake oil control solenoid |
| (35) | Exhaust oil control solenoid |
| (36) | Engine oil temperature sensor |
| (37) | Accelerator pedal position sensor |
| (38) | Oil pressure switch |
| (39) | Air filter |
| (40) | Battery sensor |
| (41) | Starter |
| (42) | Starter cut relay |
| (43) | Starter relay |
| (44) | Leak check valve ASSY |
| (45) | A/C compressor |
| (46) | A/C relay |
| (47) | A/C control module |
| (48) | Body integrated unit |
| (49) | Transmission control module (TCM) (AT model) |
| (50) | VSC (VDC) control module and hydraulic control unit (VSCCM & H/U) |
| (51) | ABS wheel speed sensor |
| (52) | Keyless access Control Module |
| (53) | Ignition switch |
| (54) | Generator |
| (55) | Data link connector |
| (56) | To IG |
| (1) | Engine control module (ECM) |
| (2) | Fuel pump |
| (3) | Fuel filter |
| (4) | Fuel tank |
| (5) | Fuel injector (for port injection) LH |
| (6) | Fuel injector (for cylinder direct injection) LH |
| (7) | Camshaft position sensor LH |
| (8) | High-pressure fuel pump |
| (9) | Manifold absolute pressure sensor |
| (10) | Electronic throttle control sensor |
| (11) | Engine coolant temperature sensor |
| (12) | Front oxygen (A/F) sensor |
| (13) | Fuel pressure sensor |
| (14) | Rear oxygen sensor |
| (15) | Camshaft position sensor RH |
| (16) | Fuel injector (for port injection) RH |
| (17) | Fuel injector (for cylinder direct injection) RH |
| (18) | Crankshaft position sensor |
| (19) | Mass air flow and intake air temperature sensor |
| (20) | Starter |
