2022 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE

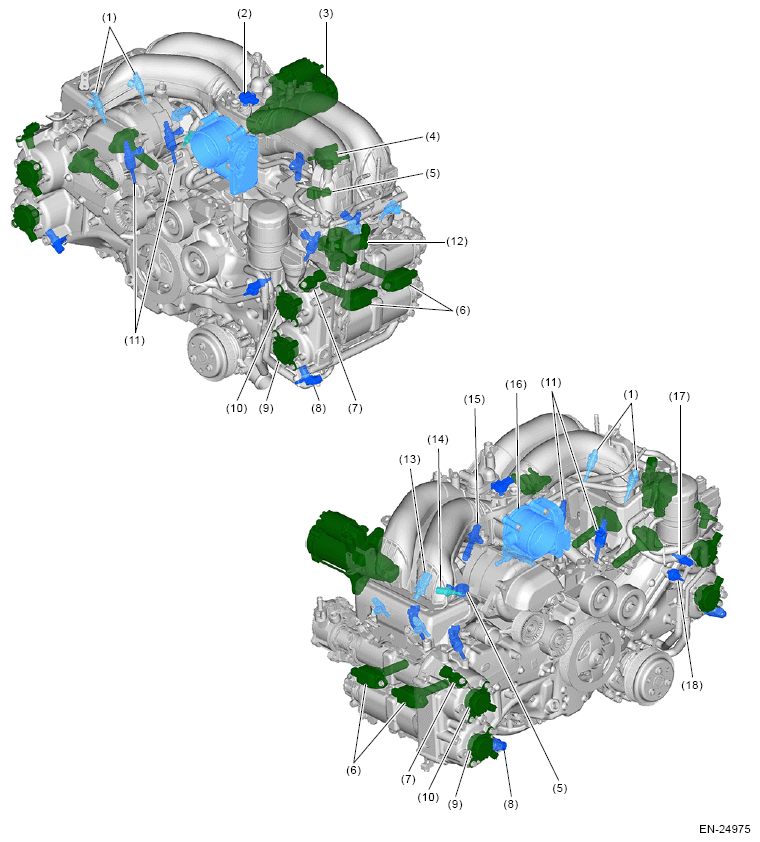

Engine Unit
| (1) | Fuel injector (for port injection) |
| (2) | Manifold absolute pressure sensor (intake manifold) |
| (3) | Starter motor |
| (4) | Purge control solenoid valve |
| (5) | Knock sensor |
| (6) | Ignition coil |
| (7) | Intake camshaft position sensor |
| (8) | Exhaust camshaft position sensor |
| (9) | Exhaust oil control solenoid |
| (10) | Intake oil control solenoid |
| (11) | Fuel injector (for cylinder direct injection) |
| (12) | High-pressure fuel pump |
| (13) | Fuel pressure sensor |
| (14) | Engine coolant temperature sensor |
| (15) | Crankshaft position sensor |
| (16) | Electronic throttle control |
| (17) | Engine oil temperature sensor |
| (18) | Oil pressure switch |

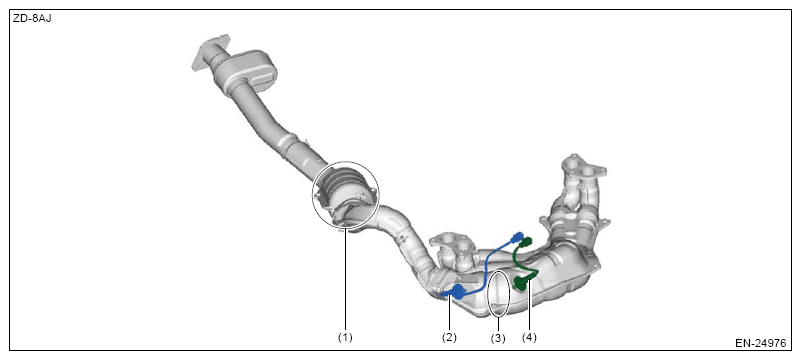

| (1) | Rear catalytic converter |
| (2) | Rear oxygen sensor |
| (3) | Front catalytic converter |
| (4) | Front oxygen (A/F) sensor |
