2022 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE

Fuel Line 2

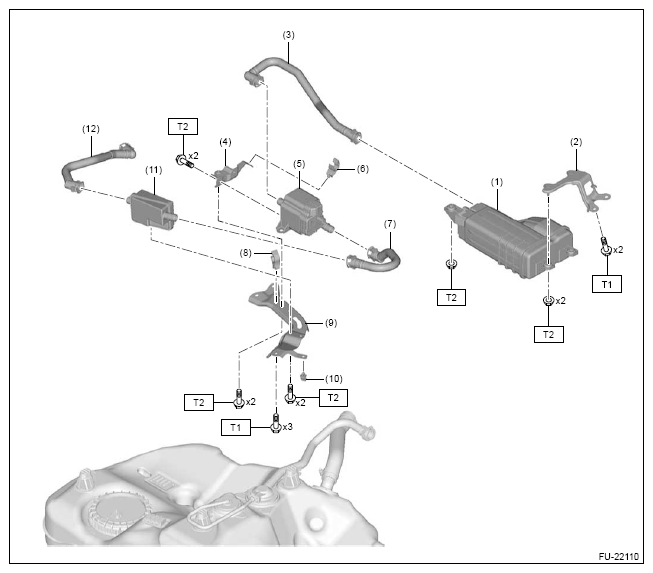

Fig 1: Fuel Line 2 Components Location

Courtesy of SUBARU OF AMERICA, INC.

(1)	Canister
(2)	Canister bracket
(3)	Drain tube
(4)	Leak check valve ASSY bracket
(5)	Leak check valve ASSY
(6)	Tube clamp
(7)	Drain tube
(8)	Tube clamp
(9)	Bracket
(10)	Tube clamp
(11)	Drain filter
(12)	Drain tube

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 8 (0.8, 5.9)
