2022 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE

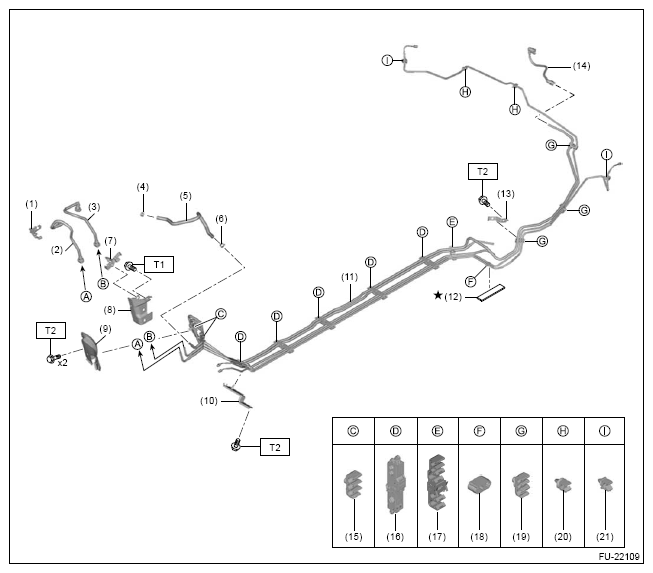

Fuel Line 1
| (1) | Fuel delivery tube clamp |
| (2) | Fuel delivery tube (port injection side) |
| (3) | Fuel delivery tube (cylinder direct injection side) |
| (4) | Clip |
| (5) | Evaporation hose |
| (6) | Clip |
| (7) | Fuel delivery tube clamp |
| (8) | Fuel protector |
| (9) | Pipe protector |
| (10) | Fuel pipe bracket front |
| (11) | Fuel pipe ASSY |
| (12) | Cushion |
| (13) | Fuel pipe bracket rear |
| (14) | Purge tube |
| (15) | Pipe clamp |
| (16) | Pipe clamp |
| (17) | Pipe clamp |
| (18) | Pipe clamp |
| (19) | Pipe clamp |
| (20) | Pipe clamp |
| (21) | Pipe clamp |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 18 (1.8, 13.3)
