2022 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE
Fuel Sub Level Sensor Side
- Remove the fuel sub level sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL SUB LEVEL SENSOR>REMOVAL .

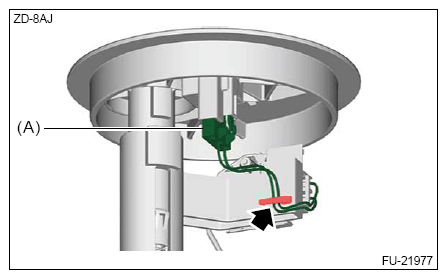

- Disconnect the connector (A) of the fuel sub level sensor and pull out the fuel sub level sensor harness from the clip.

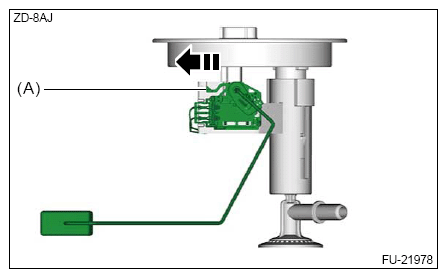

- Press the claw (A) of the fuel sub level sensor to unlock, and slide the fuel sub level sensor in the direction of the arrow to remove the fuel sub level sensor.
