2022 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE
Fuel Sub Level Sensor Side
- Check that the fuel sub level sensor has no damage.
- Check the fuel sub level sensor float position.NOTE: When inspecting the fuel sub level sensor, perform the work with the sensor installed to the fuel sub level sensor case.

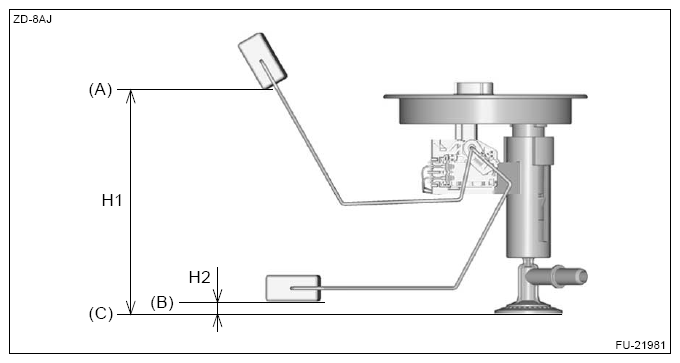

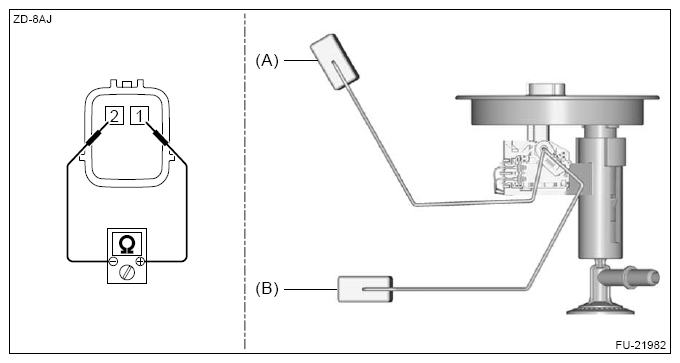

(A) FULL (B) EMPTY (C) Fuel tank seating surface Float position Standard FULL - Fuel tank seating surface H1 153.6 - 162.6 mm (6.047 - 6.402 in) EMPTY - Fuel tank seating surface H2 4.05 - 13.05 mm (0.159 - 0.514 in) - Check the resistance between fuel sub level sensor terminals by the connector on top of the fuel sub level sensor.
| Float position | Terminal No. | Standard |
|---|---|---|
| FULL (A) | 1 - 2 | 6.5 - 8.5 Ξ© |
| EMPTY (B) | 247.6 - 252.6 Ξ© |
