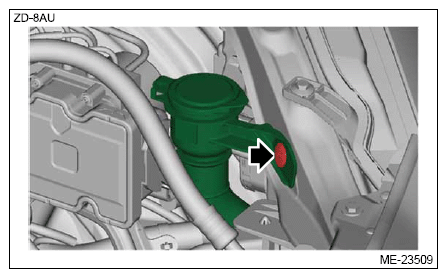

RH Side

Tightening torque:

17 N.m (1.7 kgf-m, 12.5 ft-lb)

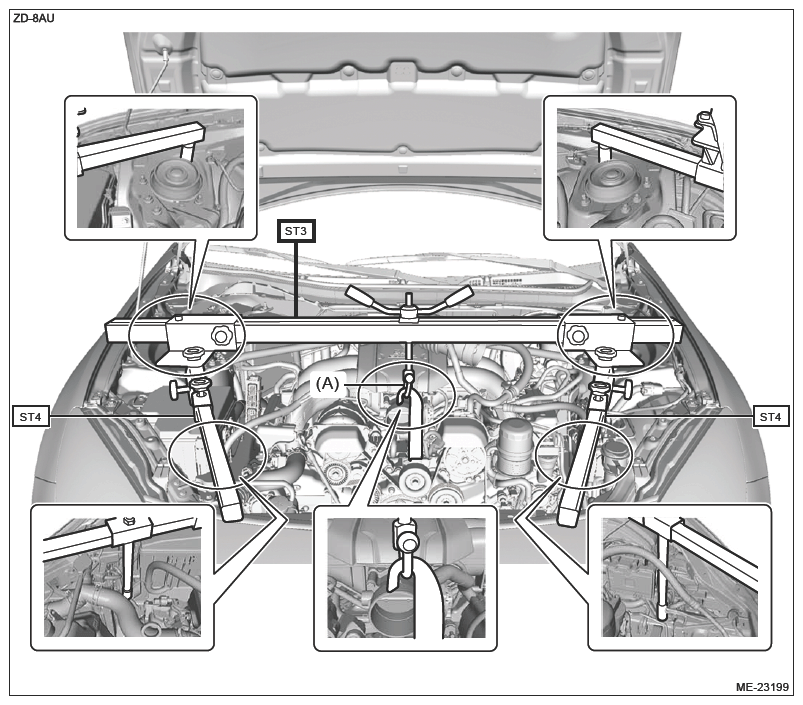

1. Set the ST3, ST4, and the shackle to the vehicle.
   CAUTION:

   • Use a shackle with the load capacity of 250 kg (551 lb) or more.

     Courtesy of SUBARU OF AMERICA, INC.

   • Set the ST3, ST4, and the shackle at the locations shown in the figure.

   Preparation tool:

   ST3: ENGINE HANGER (99099AJ000)

   ST4: ADJUSTER (18679AA020)

   General tool:

   Shackle

   Courtesy of SUBARU OF AMERICA, INC.

   (A)

   Shackle

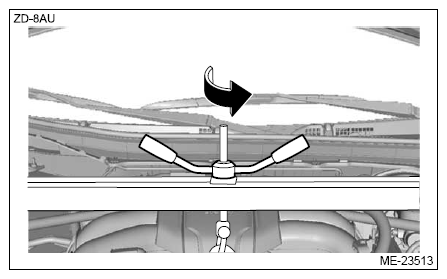

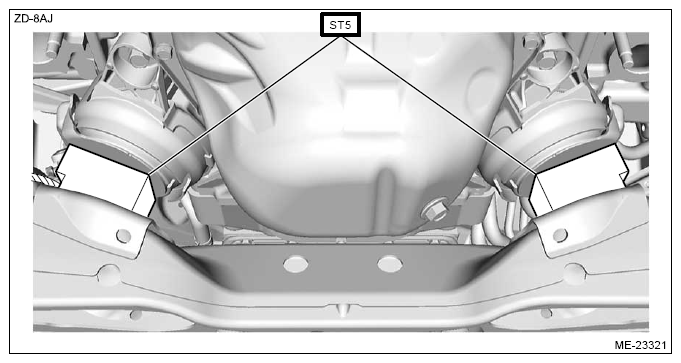

2. Turn the handle clockwise to lift the engine gradually and remove the ST5.
   CAUTION:

   • To prevent damage to the threaded portion of the handle, apply grease or lubricants to the threaded portion before starting the work.
   • When lifting up the engine unit, pay attention to the clearance of each part and be careful not to lift the engine too much, in order to prevent damaging the vehicle.

   Courtesy of SUBARU OF AMERICA, INC.

   Courtesy of SUBARU OF AMERICA, INC.

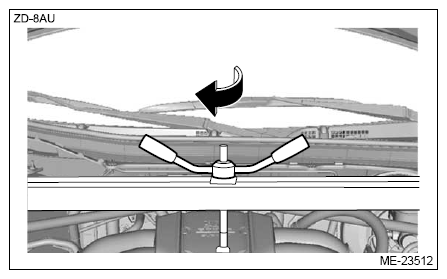

3. Turn the handle counterclockwise to lower the engine gradually and insert the stud bolt of the engine mounting into the engine mounting hole of the crossmember COMPL front.
   NOTE:

   • If it is hard to insert the stud bolt of the engine mounting into the engine mounting hole of the crossmember COMPL front, lower the engine while lightly pushing it toward the rear of the vehicle.
   • Check that the stud bolt of the engine mounting is securely inserted into the engine mounting hole of the crossmember COMPL front.

   Courtesy of SUBARU OF AMERICA, INC.

4. Remove the ST3, ST4, and the shackle from the vehicle.

   Courtesy of SUBARU OF AMERICA, INC.

   (A)

   Shackle

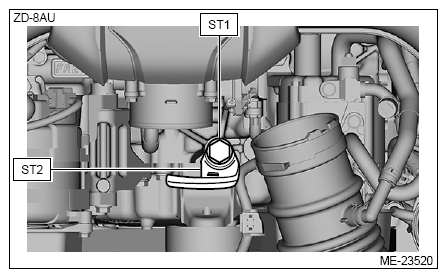

5. Remove the ST1 and ST2.

Courtesy of SUBARU OF AMERICA, INC.

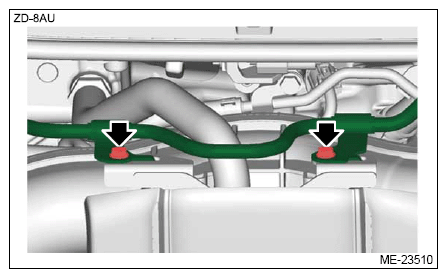

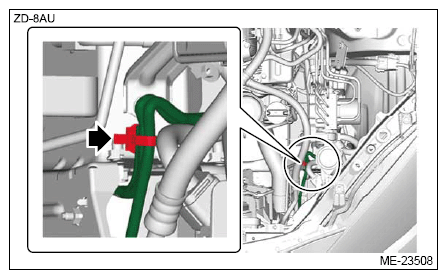

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

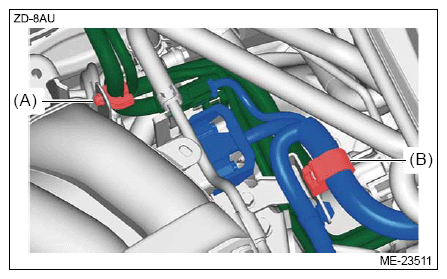

• RH side

  Courtesy of SUBARU OF AMERICA, INC.

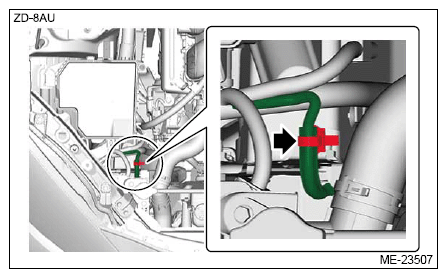

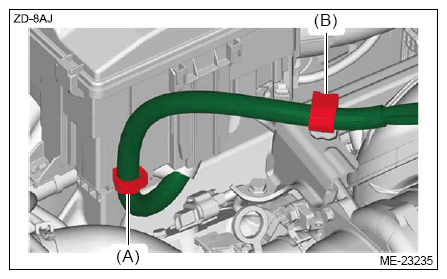

• LH side

Courtesy of SUBARU OF AMERICA, INC.
