Select Cable: Adjustment
- Release the shift lock using a screwdriver, etc. and shift the select lever to the "N range".
- Remove the center exhaust cover (front). Ref. to EXHAUST (H4DOTC)>Rear Exhaust Pipe>REMOVAL .

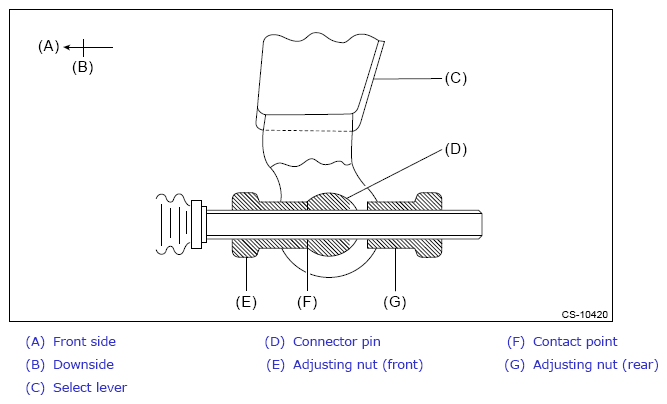

- Loosen the adjusting nut (front) and adjusting nut (rear).
- Turn the adjusting nut (front) until it lightly touches the connector pin.
- While holding the adjusting nut (front) in place, tighten the adjusting nut (rear).
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- After the completion of adjustment, check that the select lever operates normally at all ranges.
