2022 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE

Select Lever: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Release the shift lock using a screwdriver, etc. and shift the select lever to the "N range".
    G13199468Courtesy of SUBARU OF AMERICA, INC.

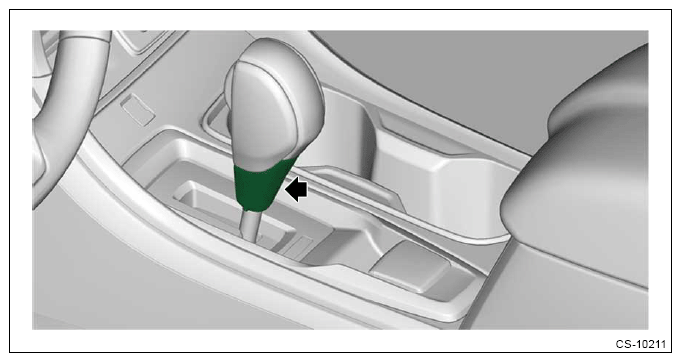

  3. Lower the grip cover vertically.
    G13199839Courtesy of SUBARU OF AMERICA, INC.

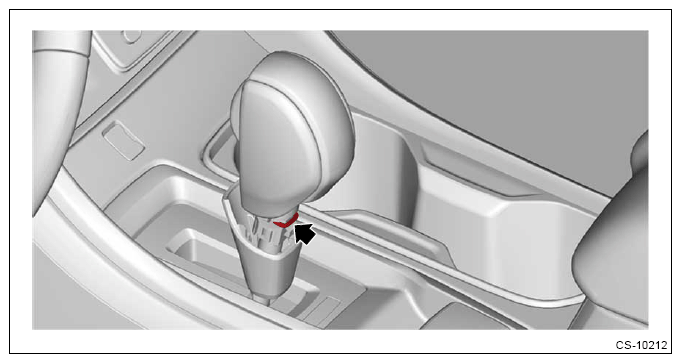

  4. Remove the clamp.
    G13199840Courtesy of SUBARU OF AMERICA, INC.

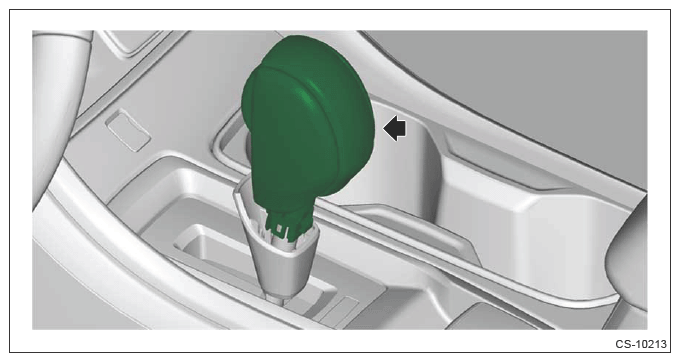

  5. Remove the grip.
    G13199841Courtesy of SUBARU OF AMERICA, INC.

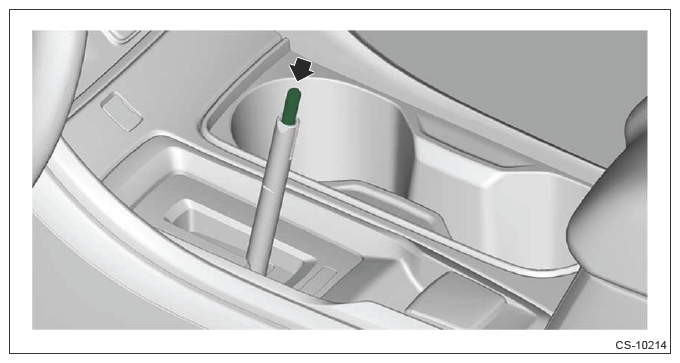

  6. Remove the rod.
    G13199842Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the cover assembly front and the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .
  8. Remove the cover center side RH and the cover center side LH. Ref. to EXTERIOR/INTERIOR TRIM>Center Console>REMOVAL .
  9. Remove the select cable. Ref. to CONTROL SYSTEMS>Select Cable>REMOVAL .
  10. Disconnect the connector.
    G13199843Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the select lever.
    G13199844Courtesy of SUBARU OF AMERICA, INC.

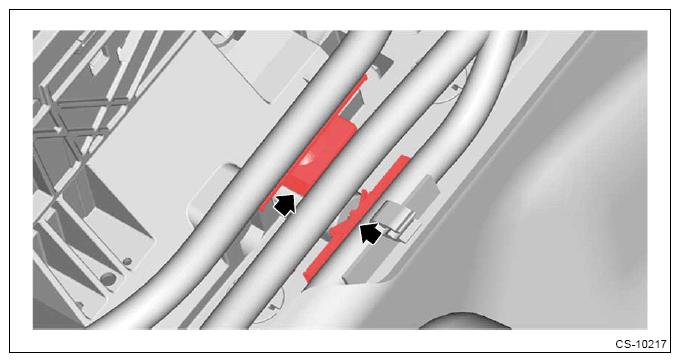

  12. Remove the harness clip.
    G13199845Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the indicator.
    G13199846Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the connector.
    G13199847Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the harness.
    G13199848Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the housing, blind A and blind B.
    G13199849Courtesy of SUBARU OF AMERICA, INC.

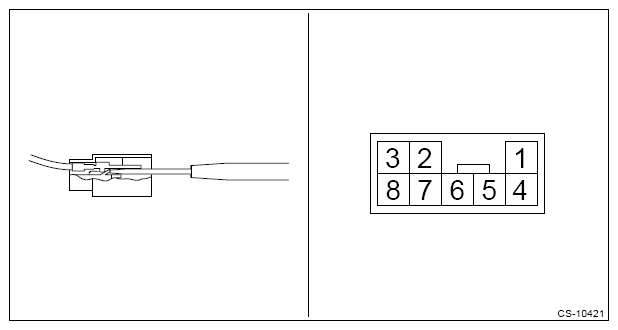

  17. Pull out the terminal of the solenoid unit using KTC connector terminal tool (part number: ECC-1T).
    NOTE: A flat tip precision screwdriver with a tip width of 1.3 mm (0.05 in) or less can also be used.
    G13621477Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Wiring color
    5 Red/white
    6 Blue/white
