2022 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE

Transmission Case: Assembly

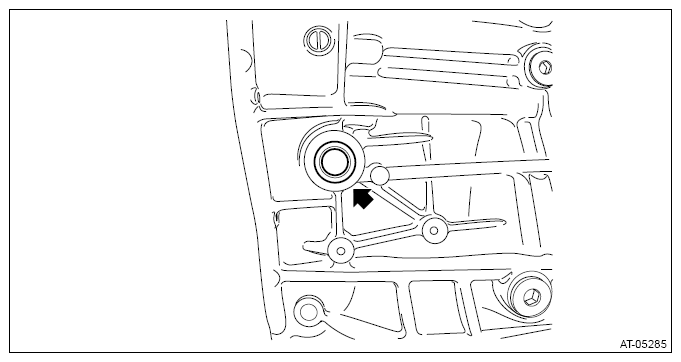

  1. Using the ST, install the oil seal.

    Preparation tool:

    ST: INSTALLER (18657AA000)

    G13200237Courtesy of SUBARU OF AMERICA, INC.

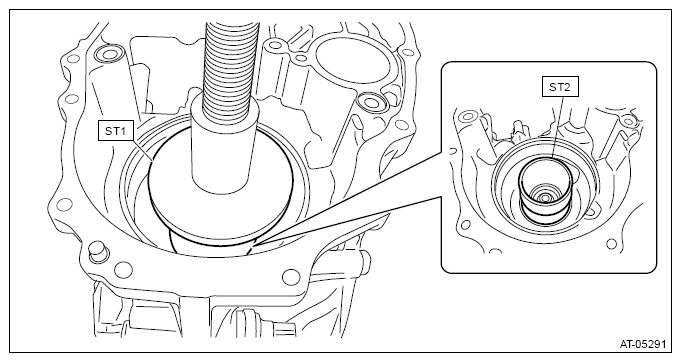

  2. Install it using ST1, ST2 and a press, with a new ball bearing (reduction driven gear side).
    CAUTION:
    • Before press-fitting the ball bearing, apply CVTF to press-fitting surface.
    • Use SUBARU genuine CVTF.

    Preparation tool:

    ST1: INSTALLER (398177700)

    ST2: PRESS SNAP RING (499755602)

    G13200244Courtesy of SUBARU OF AMERICA, INC.

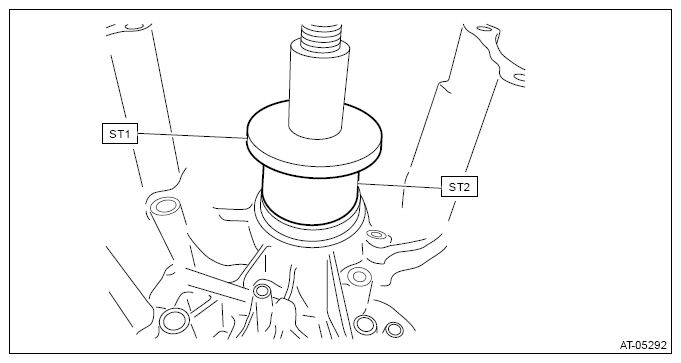

  3. Install it using ST1, ST2 and a press, with a new roller bearing (primary pulley side).
    NOTE: Make adjustment so that the press gets in contact with the center of ST2.

    Preparation tool:

    ST1: INSTALLER (398177700)

    ST2: BASE (20299AG010)

    G13200245Courtesy of SUBARU OF AMERICA, INC.

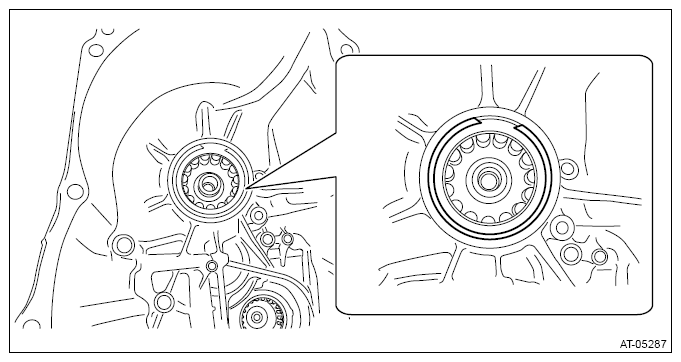

  4. Install it with a new snap ring (primary pulley side).
    G13200239Courtesy of SUBARU OF AMERICA, INC.

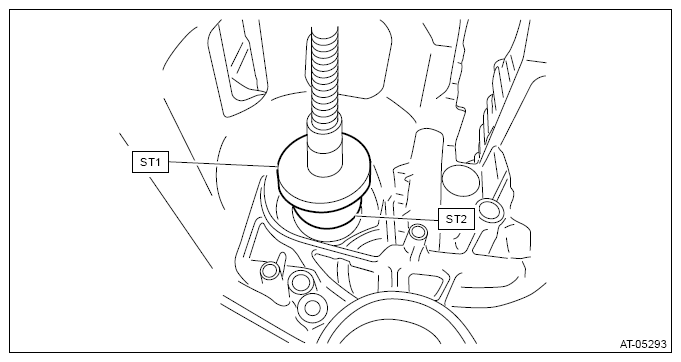

  5. Install it using ST1, ST2 and a press, with a new roller bearing (secondary pulley side).
    NOTE:
    • Make adjustment so that the press gets in contact with the center of ST2.

    Preparation tool:

    ST1: INSTALLER (398177700)

    ST2: PRESS SNAP RING (499755602)

    G13200247Courtesy of SUBARU OF AMERICA, INC.

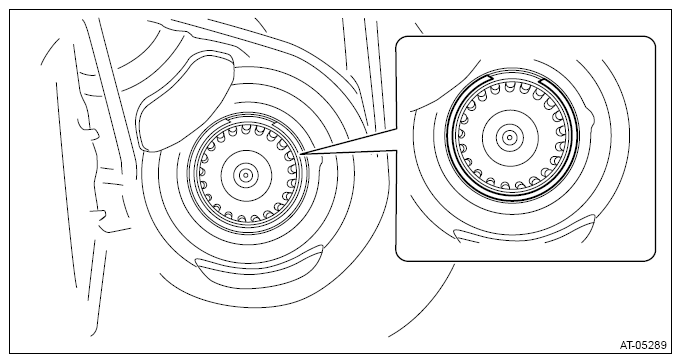

  6. Install it with a new snap ring (secondary pulley side).
    G13200248Courtesy of SUBARU OF AMERICA, INC.
  7. Using new gaskets and new O-rings, install the plugs.
    CAUTION:
    • Before installing O-rings, apply sufficient amount of CVTF to avoid damage and deformation.
    • Use SUBARU genuine CVTF.
    • Be careful not to incorrectly install or fail to install O-rings and other such parts.
