2022 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE

Intermediate Case: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Assembly>REMOVAL .
  2. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Extension Case>REMOVAL .
  3. Remove the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Parking Pawl>REMOVAL .
  4. Remove the rear drive shaft. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Rear Drive Shaft>REMOVAL .
  5. Remove the transfer clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transfer Clutch>REMOVAL .
  6. Remove the transfer reduction driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transfer Reduction Driven Gear>REMOVAL .
  7. Remove the intermediate case and the transmission hanger.
    G13200157Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the CVTF filter.
    G09482109Courtesy of SUBARU OF AMERICA, INC.

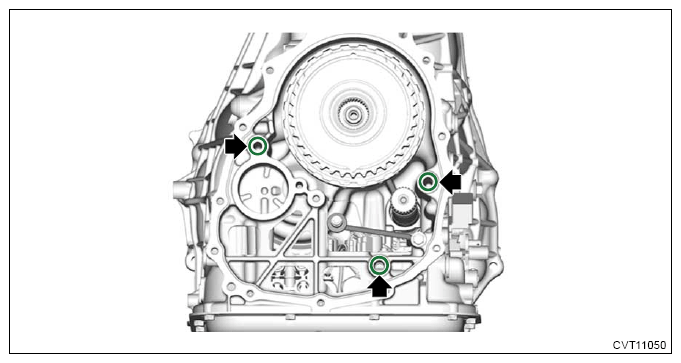

  9. Remove the O-rings.
    G13200159Courtesy of SUBARU OF AMERICA, INC.
