Front Differential: Inspection
- Check each part for excessive wear.
- Check that there is no deformation, cracks or other damages.
- Check the bearing for smooth rotation.

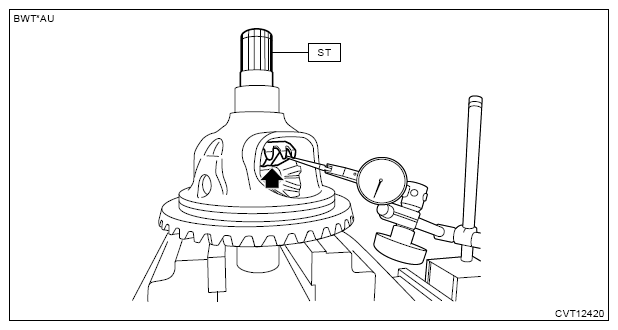

- Using a magnet stand and dial gauge (lever type), check the backlash of the pinion gear.
Specification:
0.13 - 0.18 mm (0.0051 - 0.0071 in)
- Measure the hypoid gear set backlash, and then adjust it to be within specification. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Front Differential>ADJUSTMENT .
