2022 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE
Control Valve Body: Removal
NOTE:
The control valve body is a non-disassembly part.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the oil pan and oil strainer. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Oil Pan>REMOVAL .

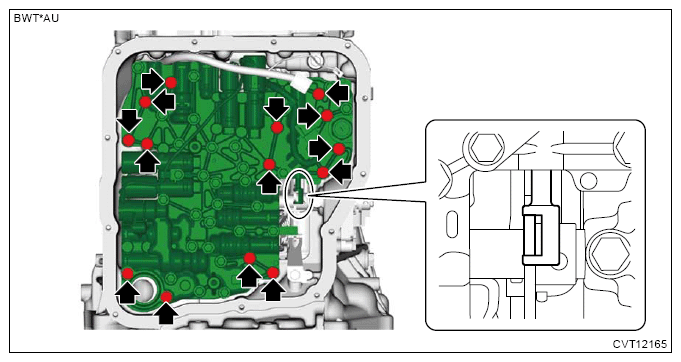

- Disconnect the connector.
- Remove the control valve body.CAUTION: Be careful not to let the manual valve drop off.

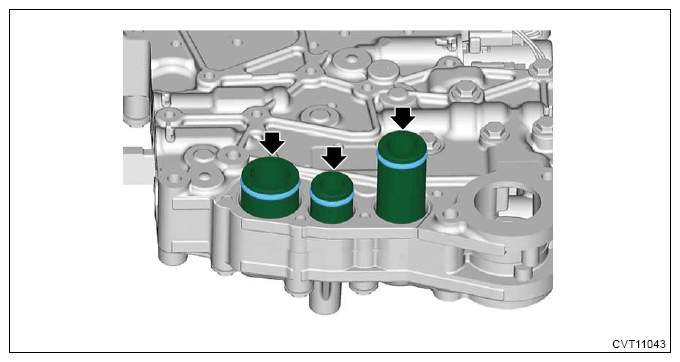

- Remove the pressure pipe No. 1, pressure pipe No. 2 and pressure pipe No. 3.NOTE: It may remain in the transmission case side.

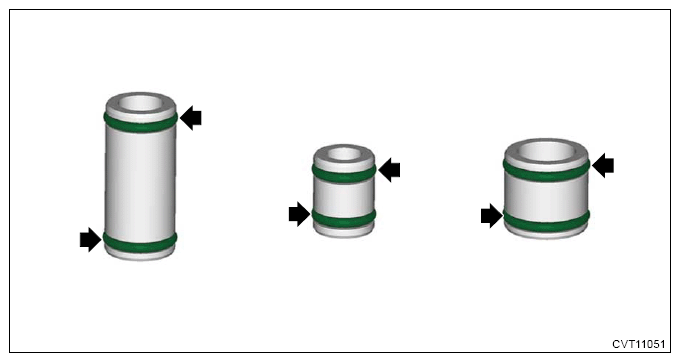

- Remove the O-rings from the pressure pipe No. 1, pressure pipe No. 2 and pressure pipe No. 3.
