2022 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE

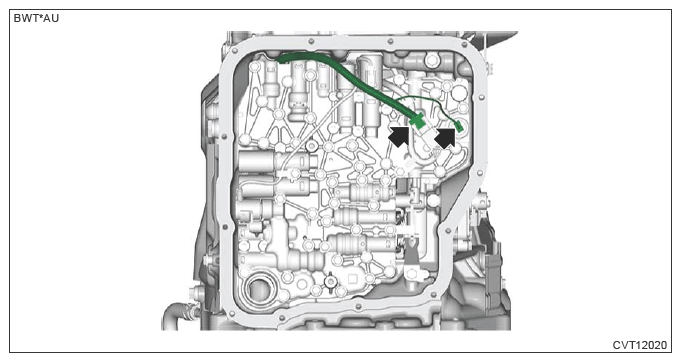

Control Valve Body: Inspection
- Check for oil leaks.
- Check that there is no deformation, cracks or other damages.
- Measure the resistance of each solenoid.NOTE: Measurement should be performed at 20Β°C (68Β°F).
Solenoid Terminal No. Standard Line pressure solenoid No. 1 - Control valve body 3.3 - 7.3 Ξ© Lock-up duty solenoid No. 2 - Control valve body 10 - 14.2 Ξ© F&R solenoid No. 3 - Control valve body 3.5 - 7.1 Ξ© Secondary solenoid No. 4 - Control valve body 3.3 - 7.3 Ξ© Oil pump ON/OFF solenoid No. 5 - Control valve body 12.5 - 19.5 Ξ© Primary DOWN solenoid No. 6 - Control valve body 10 - 14.2 Ξ© Primary UP solenoid No. 7 - Control valve body 10 - 14.2 Ξ© AWD solenoid No. 8 - Control valve body 3.3 - 7.3 Ξ©
