2022 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE
Engine Oil Temperature Sensor: Inspection
- Check that the engine oil temperature sensor has no deformation, cracks or other damages.

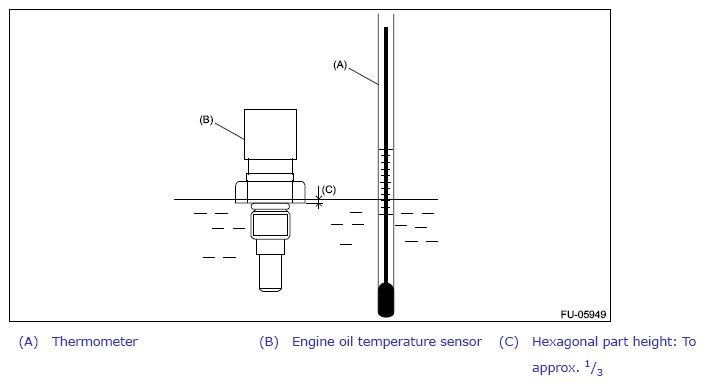

- Immerse the engine oil temperature sensor and a thermometer in water.CAUTION: Take care not to allow water to get into the engine oil temperature sensor connector. Completely remove any water inside.
- Raise water temperature gradually, measure the resistance between the engine oil temperature sensor terminals when the temperature is 20°C (68°F) and 80°C (176°F).NOTE: Agitate the water for even temperature distribution.
Water temperature Terminal No. Standard 20°C (68°F) 1 and 2 2.45±0.2 kΩ 80°C (176°F) 0.318±0.013 kΩ
