Intake Manifold Assembly: Installation
- Install the cylinder head plate to the cylinder head.
- Install the fuel pipe protector stay.
Tightening torque:
19 N.m (1.9 kgf-m, 14.0 ft-lb)
- Set a new gasket and install the intake manifold assembly.NOTE: Be careful not to let the engine wiring harness be caught by the parts.
Tightening torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)
- Set a new gasket, and install the stud bolts using TORX® socket E5.
Tightening torque:
6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
- Temporarily attach the EGR pipe No. 2 and tighten it in order (1) →
(2) →
(3).
Tightening torque:
9 N.m (0.9 kgf-m, 6.6 ft-lb)
- Install the PCV hose. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>PCV Hose>INSTALLATION .
- Install the harness stay.
Tightening torque:
6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
- Install the clip (E) and connector (D).
- Install the clip (C) and harness (B) to the harness stay.
- Connect the connector (A).
- Install the clip (D) and clip (C).
- Connect the fuel delivery pipe (B). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE B) .
- Connect the connector (A).
- Install the fuel pipe protector No. 2.
Tightening torque:
19 N.m (1.9 kgf-m, 14.0 ft-lb)
- Temporarily attach the fuel pipe protector No. 1, and tighten the bolts securing the A/C compressor in numerical order as shown in figure.
Tightening torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)
- Install the V-belts. Ref. to MECHANICAL (H4DOTC)>V-belt>INSTALLATION>V-BELT .
- Set the engine wiring harness and secure the engine wiring harness to the bracket with the claw.
- Install the engine wiring harness to the clip (D), and connect the connector (C).
- Connect the connector (A) and connector (B) in numerical order shown in figure.
- Secure the battery cable assembly with the claw (B) and clip (A).

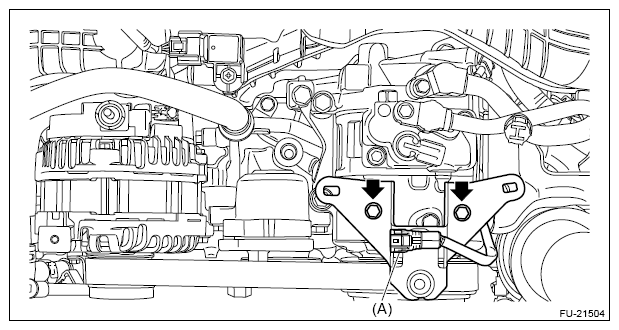

- Install the V-belt cover bracket and install the connector (A).
Tightening torque:
6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
- Secure the battery cable assembly with the clip (A) and clip (B).

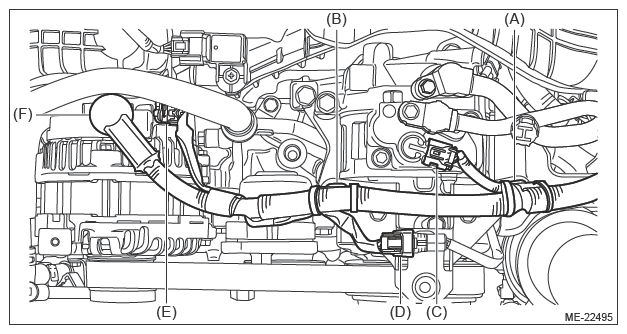

- Connect the connector (C), connector (D), connector (E), and the terminal (F).
Tightening torque:
15.5 N.m (1.6 kgf-m, 11.4 ft-lb)
- Install the V-belt cover.NOTE:
- Check the grommet for peel-off or disengagement.
- Be careful not to deform the bracket during installation.
Tightening torque:
7 N.m (0.7 kgf-m, 5.2 ft-lb)
- Connect the purge hose (E).
- Install the fuel delivery tube clamp (D).
- Connect the fuel delivery tube (C). Ref. to FUEL INJECTION (FUEL SYSTEMS (H4DOTC)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE A) .
- Connect the connector (A) and connector (B).
- Connect the PCV pipe assembly to the intake duct No. 1 with a new O-ring.CAUTION:
- Make sure there are no damage or dust on connections. If necessary, clean the seal surface of the pipe.
- Confirm that the connections are secure.
