2022 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE
High-Pressure Fuel Pump

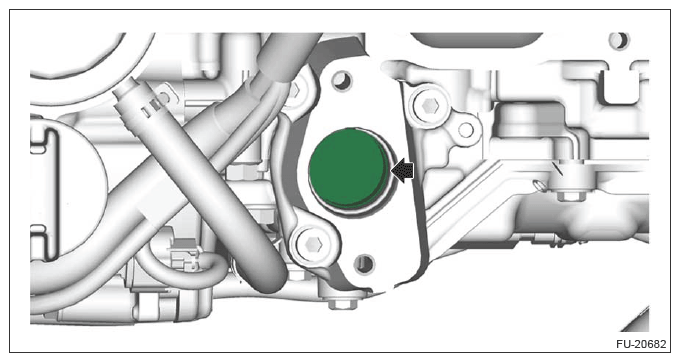

- Install the fuel pump lifter to the high-pressure fuel pump case.NOTE:
- Apply engine oil to the side of the high-pressure fuel pump case and to the bottom surface of the fuel pump lifter.
- After installing the fuel pump lifter, rotate the crankshaft in order to set the fuel pump lifter comes to the lowest position.

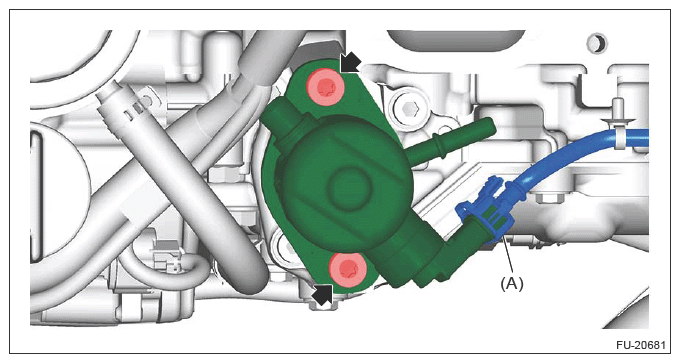

- Set a new O-ring, using TORX PLUS® 40IP, install the high-pressure fuel pump.
Tightening torque:Â
121 N.m (2.1 kgf-m, 15.5 ft-lb)
- Connect the connector (A) to the high-pressure fuel pump.
- Install the high-pressure fuel delivery pipe. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>High Pressure Fuel Delivery Pipe>INSTALLATION>HIGH-PRESSURE FUEL DELIVERY PIPEÂ .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
