2020 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

At Select Lever Assembly

  1. Remove the spacer plate.
    G06651725Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the gasket.
    G06651726Courtesy of SUBARU OF AMERICA, INC.

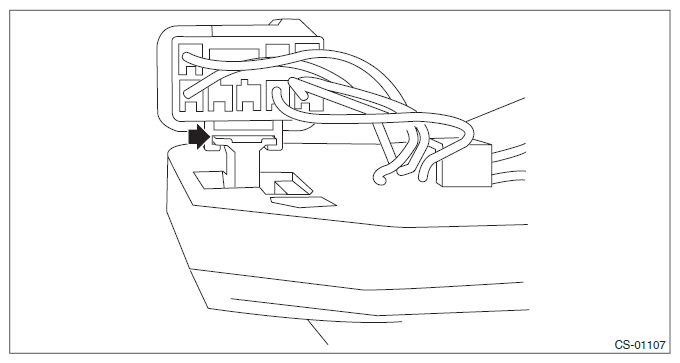

  3. Insert a flat tip screwdriver with a thin tip under the connector and disconnect the harness connector.
    G10319298Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the harness.
    G08550592Courtesy of SUBARU OF AMERICA, INC.
  5. Raise the claw with a flat tip screwdriver with a thin tip and remove the solenoid unit.
    G06651729Courtesy of SUBARU OF AMERICA, INC.

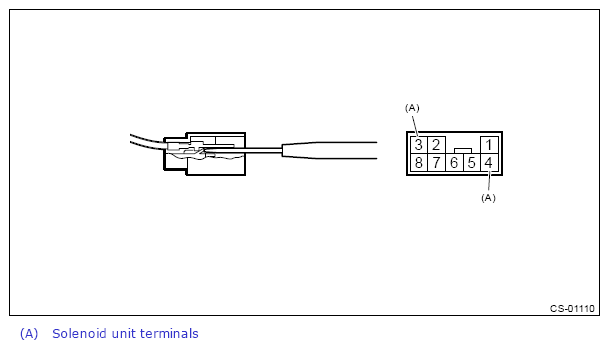

  6. Remove the terminal of the solenoid unit using a flat tip precision screwdriver with a tip width of 1.3 mm (0.05 in) or less, KTC connector terminal tool ECC-1T or equivalent.
    G13646779Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the clamp push nut.
    NOTE: Replace the clamp push nut with a new part.
    G08550595Courtesy of SUBARU OF AMERICA, INC.

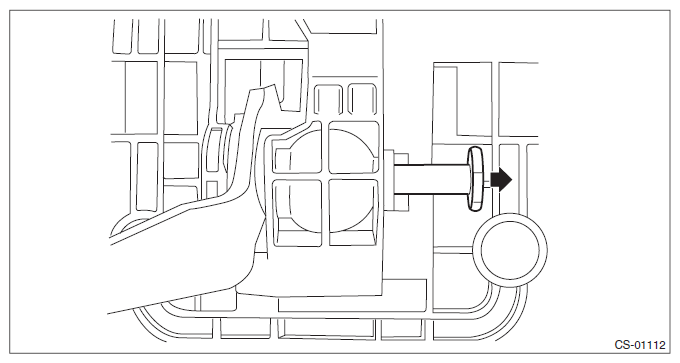

  8. Pull out shaft control.
    G10319303Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the clamp push nut.
    NOTE: Replace the clamp push nut with a new part.
    G08550597Courtesy of SUBARU OF AMERICA, INC.

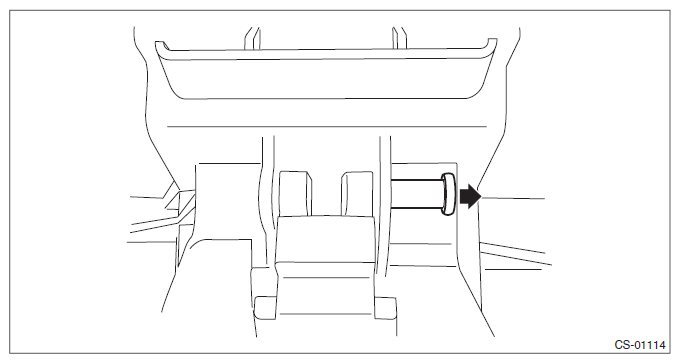

  10. Pull out spacer pin guide.
    G10319305Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the clamp pin.
    G08550599Courtesy of SUBARU OF AMERICA, INC.

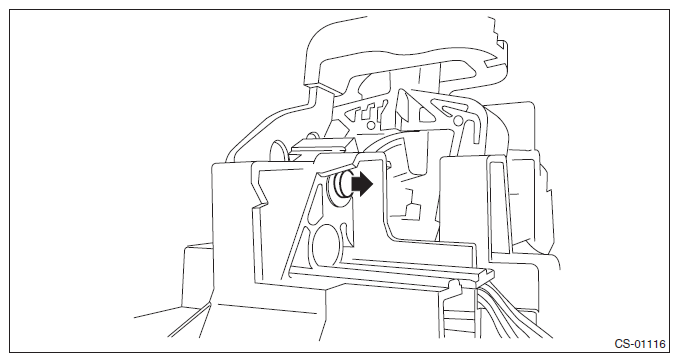

  12. Remove the spacer pin guide.
    G10319307Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the select lever COMPL.
    G08550601Courtesy of SUBARU OF AMERICA, INC.

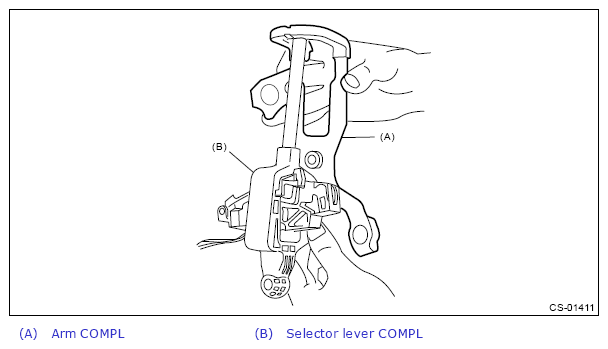

  14. Remove the arm COMPL.
    G13646787Courtesy of SUBARU OF AMERICA, INC.

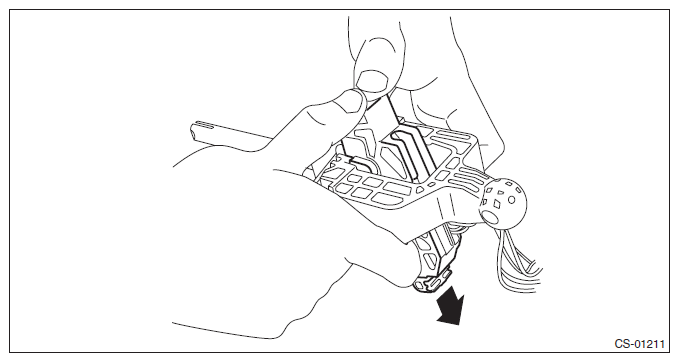

  15. Remove the plate guide.
    G10319310Courtesy of SUBARU OF AMERICA, INC.

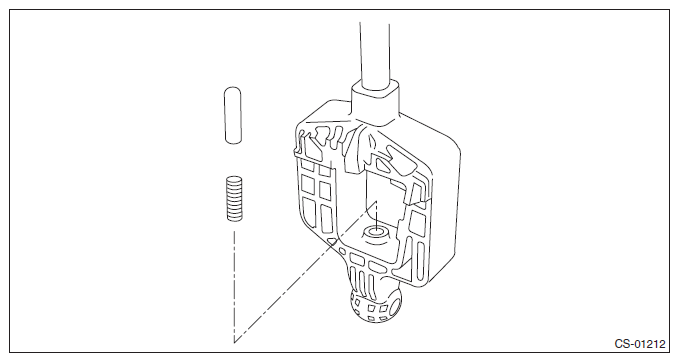

  16. Remove the rod detent and the detent spring.
    G10319311Courtesy of SUBARU OF AMERICA, INC.
