2020 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

MT Gear Select Cable: Removal

CAUTION: Always use new MT gear select cable if the cable is removed from selector lever COMPL of transmission side.
  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the air intake duct. Refer to INTAKE (INDUCTION) (W/O STI)>AIR INTAKE DUCT>REMOVAL .
  3. Remove the intercooler and the intercooler stay. Refer to INTAKE (INDUCTION) (W/O STI)>INTERCOOLER>REMOVAL .

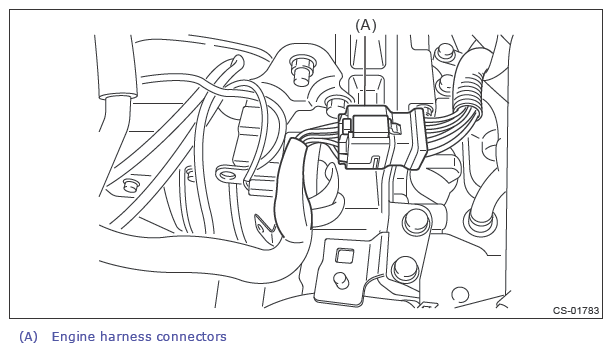

  4. Disconnect the engine harness connector.
    G13646890Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the transmission radio ground cord terminal.
    G09481245Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the pitching stopper. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>TRANSMISSION MOUNTING SYSTEM>REMOVAL>PITCHING STOPPER .
  7. Lift up the vehicle.
  8. Remove the center exhaust pipe (rear). Refer to EXHAUST(W/O STI)>CENTER EXHAUST PIPE>REMOVAL .

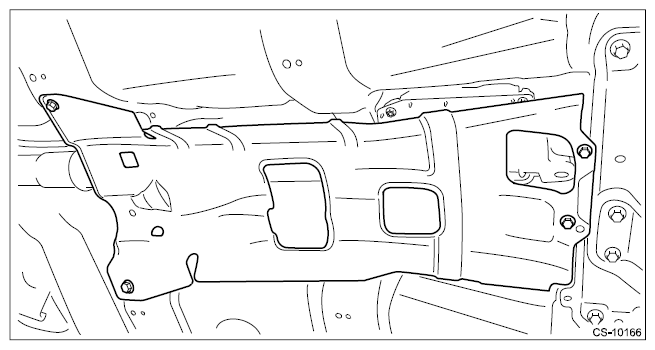

  9. Remove the center exhaust cover.
    G12448345Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the propeller shaft. Refer to DRIVE SHAFT SYSTEM>PROPELLER SHAFT>REMOVAL .

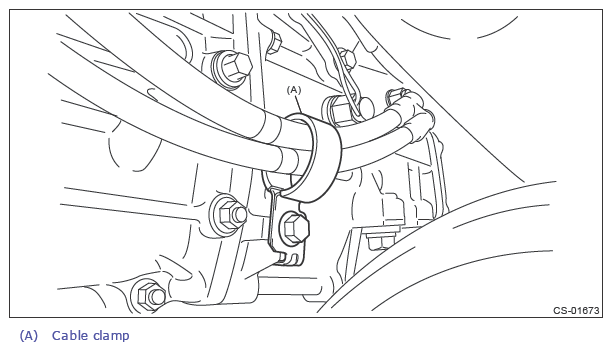

  11. Remove the cable clamp.
    G13646893Courtesy of SUBARU OF AMERICA, INC.
  12. Place the transmission jack under the transmission.

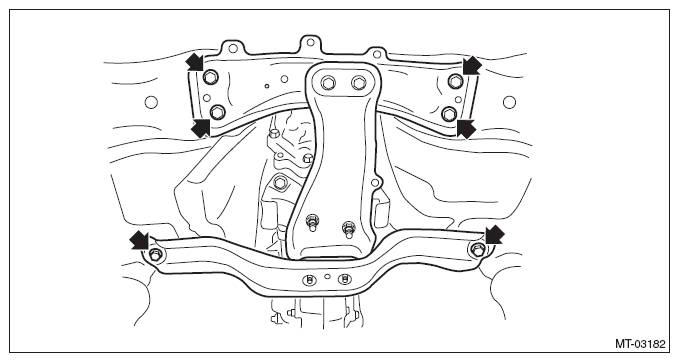

  13. Remove the mounting bolt of front crossmember and rear crossmember, and lower the transmission approx. 100 mm (4 in).
    G10267930Courtesy of SUBARU OF AMERICA, INC.

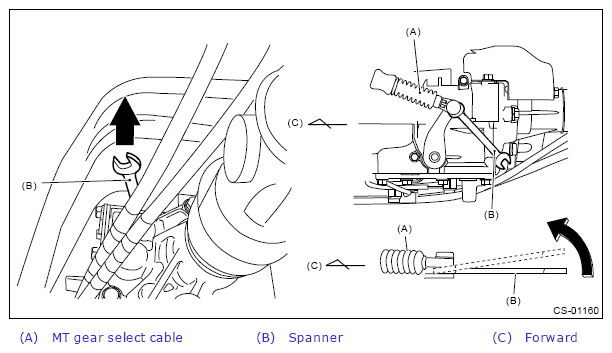

  14. Insert a spanner between the selector lever COMPL and the MT gear select cable, and remove the MT gear select cable by raising the handle.
    CAUTION: Do not apply extra overload while holding the part (a).
    G12392934Courtesy of SUBARU OF AMERICA, INC.
    NOTE:
    • Use a spanner with 11 to 13 in size.
    • The thickness of the spanner must not exceed 6 mm (0.2 in).
    G13646896Courtesy of SUBARU OF AMERICA, INC.

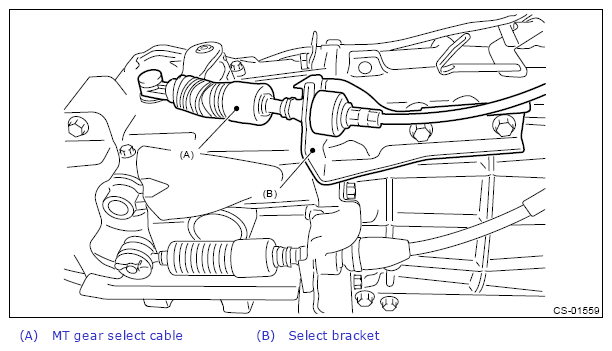

  15. Remove the MT gear select cable and select bracket as a single unit.
    G13646897Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the cable cover plate.
    G10267862Courtesy of SUBARU OF AMERICA, INC.
  17. Disconnect the MT gear select cable.
    CAUTION:
    • Be careful not to deform the cable inner.
    • Do not apply extra overload while holding the part (a).
    G12392938Courtesy of SUBARU OF AMERICA, INC.

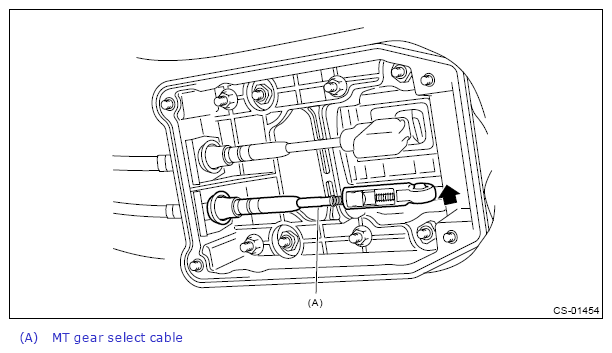

    NOTE: Push the MT gear select cable in the direction of arrow, and remove it.
    G13646900Courtesy of SUBARU OF AMERICA, INC.

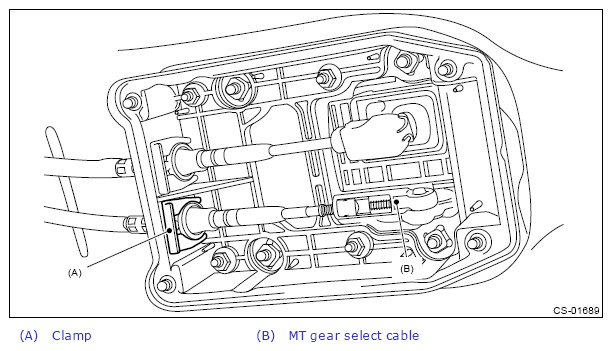

  18. Remove the clamp.
    G13646901Courtesy of SUBARU OF AMERICA, INC.

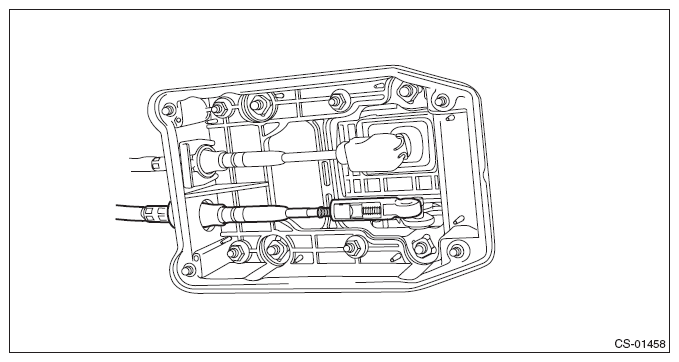

  19. Pull out the MT gear select cable.
    CAUTION: Do not bend the MT gear select cable sharply.
    G09481256Courtesy of SUBARU OF AMERICA, INC.
