2020 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
MT Gear Select Cable: Adjustment
NOTE:
Two persons are required to perform the MT gear select cable adjustment. (Only the step 7) requires two workers.)
- Move the shift lever to the 6th.
- Remove the cable cover plate.

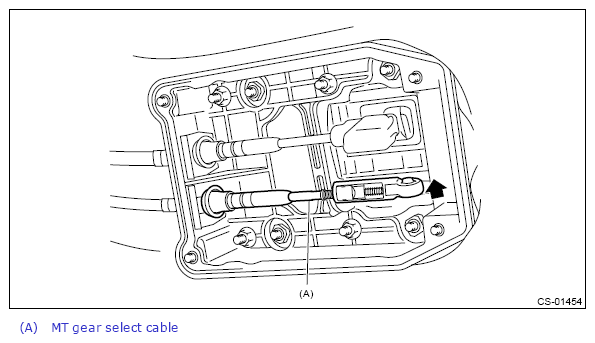

- Disconnect the MT gear select cable.CAUTION: Do not apply extra overload while holding the part (a).NOTE: Push the MT gear select cable in the direction of arrow, and remove it.

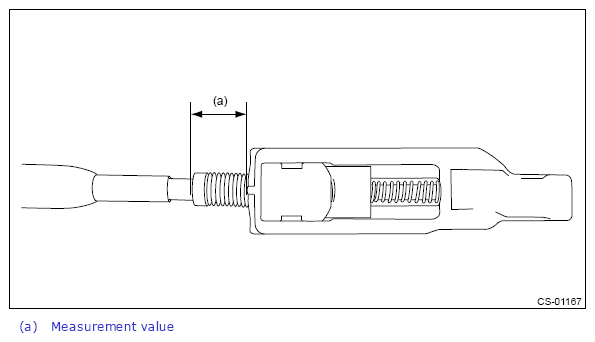

- Measure the exposed length (a) of MT gear select cable.
- Slide the slider (green) in the direction of the arrow and release the lock piece (pink) by using flat tip screwdriver etc.CAUTION: Lock piece is easily damaged for the resin. When the lock piece is broken, replace the new MT gear select cable.
