2020 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Rear Wheel Toe-In
When adjusting, adjust it to the following value.
Toe-in: Adjustment value
3±2 mm (0.12±0.08 in)

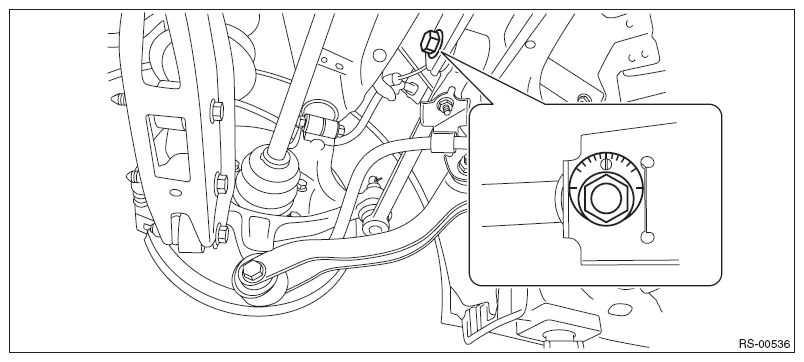

- Loosen the self-locking nut after holding the bolt head section of lateral link assembly - front.
- Turn the adjusting bolt until toe-in is within the specification.NOTE: When the left and right wheels are adjusted for toe-in at the same time, the movement of one scale graduation changes toe-in by approx. 6.0 mm (0.24 in).
To increase toe-in. Rotate the left side clockwise. Rotate the right side counter clockwise. To decrease toe-in. Rotate the left side counter clockwise. Rotate the right side clockwise. - Attach and tighten a new self-locking nut.
Tightening torque:
100 N.m (10.2 kgf-m, 73.8 ft-lb)
NOTE:
While holding the adjusting bolt side, tighten the nut side.
