2020 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Electrical Specification
NOTE:

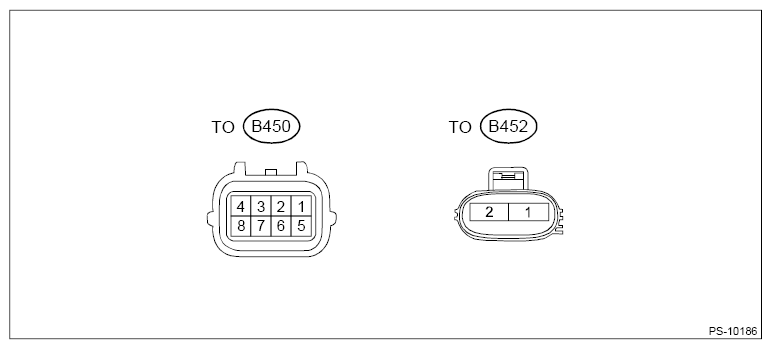

The terminal numbers of the power steering control module connectors are as indicated in the figure.
| Content | Connect or No. | Terminal No. | Input/output signal |
|---|---|---|---|
| Measured value and measuring conditions | |||
| Power supply (IG SW) | B450 | 3 | Battery voltage is detected with the ignition switch ON when measuring between (B450) No. 3 - (B452) No. 1. |
| CAN communication | B450 | 4 | Digital signal; can not be measured |
| CAN communication | B450 | 8 | Digital signal; can not be measured |
| Power supply | B452 | 2 | Battery voltage is constantly detected when measuring between (B452) No. 1 - (B452) No. 2. |
| Ground | B452 | 1 |
