2020 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

Section 9 (Engine Control System (Diagnostics) (2.5L) - Introduction): Electrical Component Location: Location: Sensor

WARNING: This page is about a different variant/trim than selected.
G13650009Courtesy of SUBARU OF AMERICA, INC.
G13650010Courtesy of SUBARU OF AMERICA, INC.

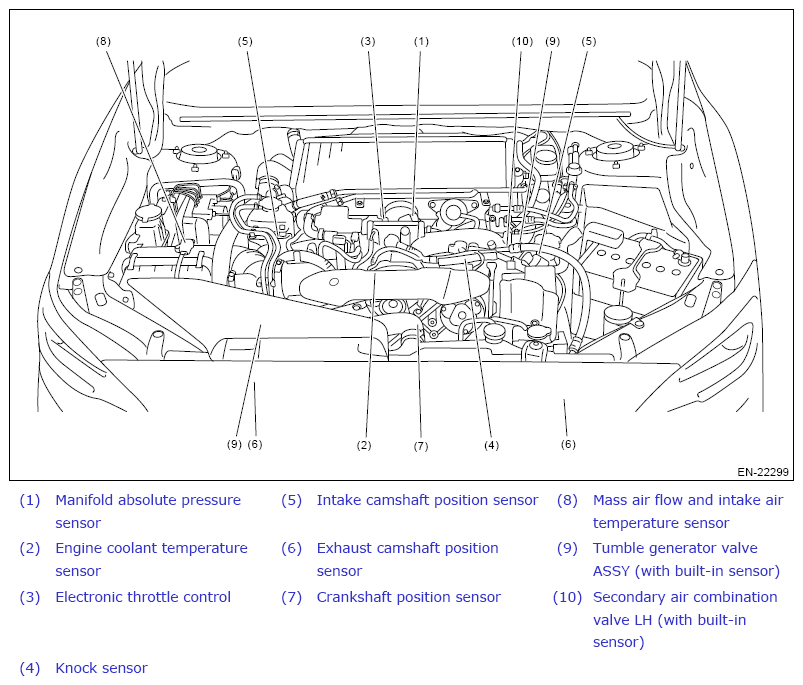

G05334569Courtesy of SUBARU OF AMERICA, INC.

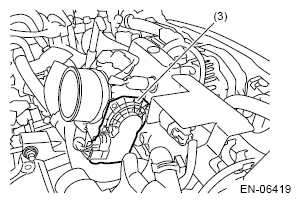

G13650012Courtesy of SUBARU OF AMERICA, INC.

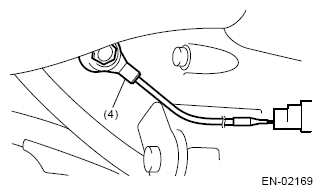

G13650013Courtesy of SUBARU OF AMERICA, INC.

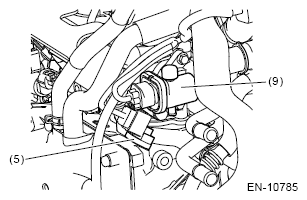

G13650014Courtesy of SUBARU OF AMERICA, INC.

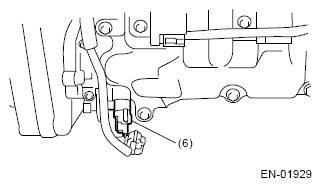

G13650015Courtesy of SUBARU OF AMERICA, INC.

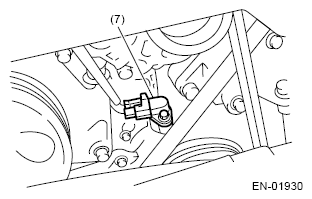

G13650016Courtesy of SUBARU OF AMERICA, INC.

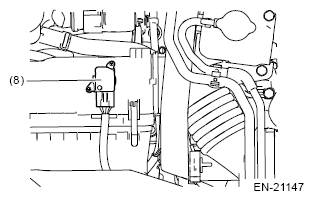

G13650017Courtesy of SUBARU OF AMERICA, INC.

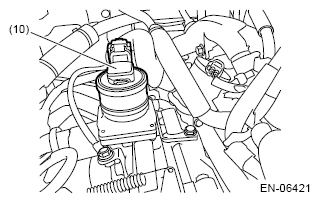

G13650018Courtesy of SUBARU OF AMERICA, INC.

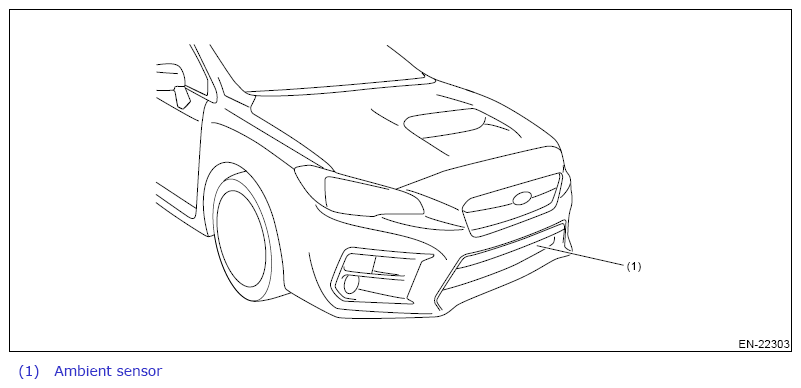

G13650019Courtesy of SUBARU OF AMERICA, INC.
G12453697Courtesy of SUBARU OF AMERICA, INC.

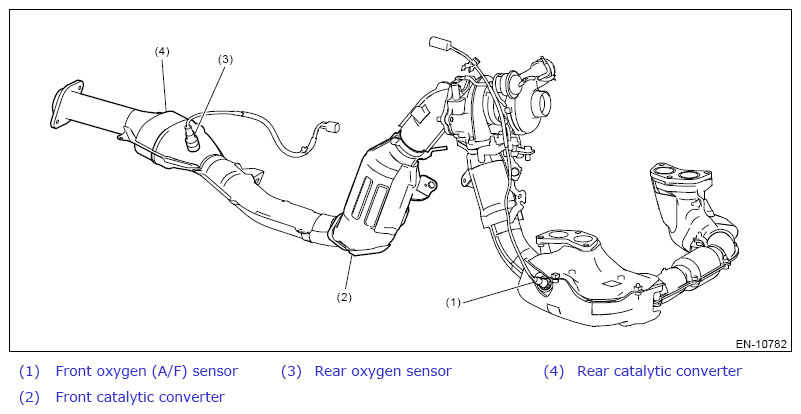

G13650021Courtesy of SUBARU OF AMERICA, INC.

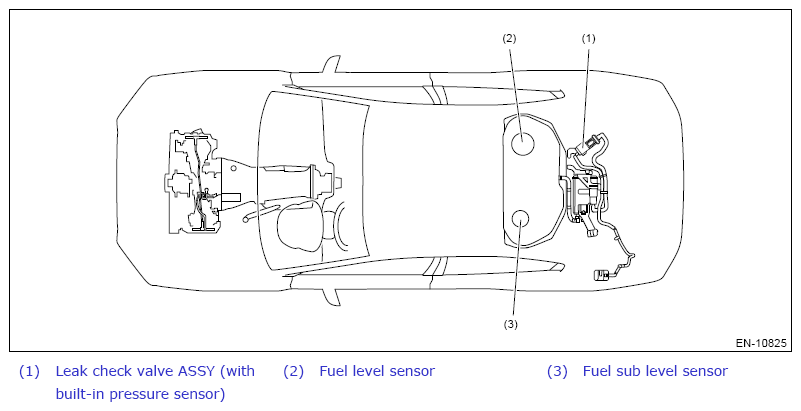

G13650022Courtesy of SUBARU OF AMERICA, INC.
G13264136Courtesy of SUBARU OF AMERICA, INC.
G13650024Courtesy of SUBARU OF AMERICA, INC.
G13650025Courtesy of SUBARU OF AMERICA, INC.
