Fuel Pressure Sensor: Installation
- Replace the injector seal, backup ring and O-ring with a new part. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>FUEL INJECTOR>REPLACEMENT .

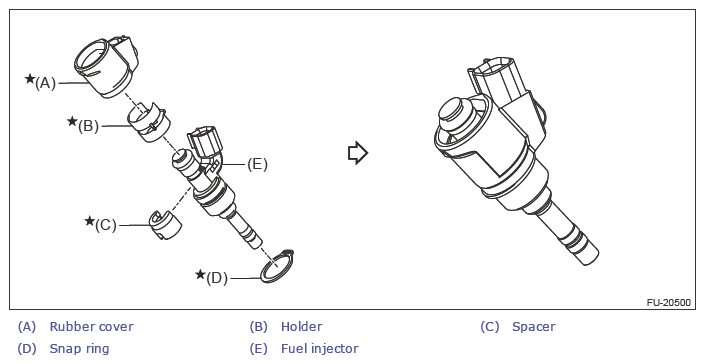

- Set the spacer, holder, rubber cover and snap ring to the fuel injector, and install it to the fuel injector pipe RH.CAUTION: Always use a new spacer, holder, rubber cover and snap ring.

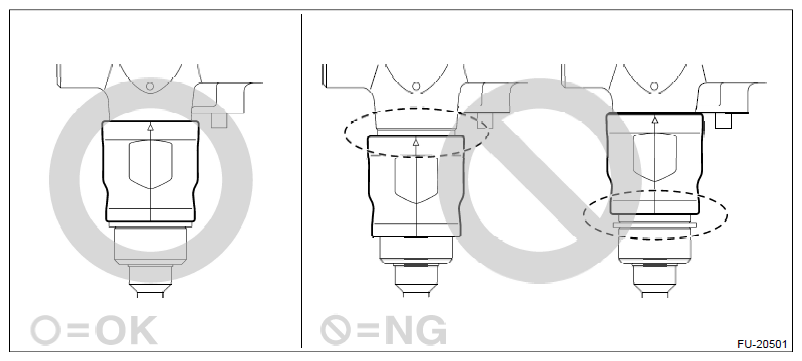

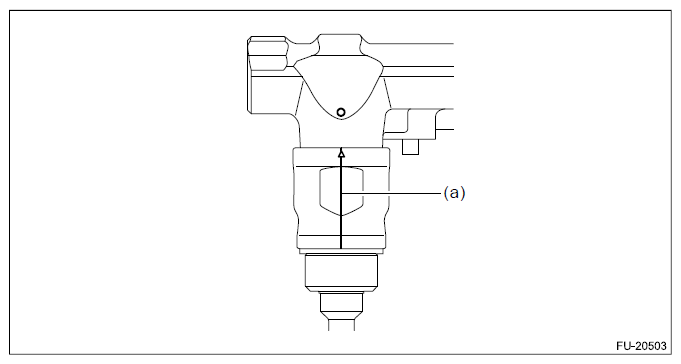

- Set the fuel injector on the fuel injector pipe RH.CAUTION:
- Install the fuel injector pipe RH and fuel injector as a single unit to the cylinder head.

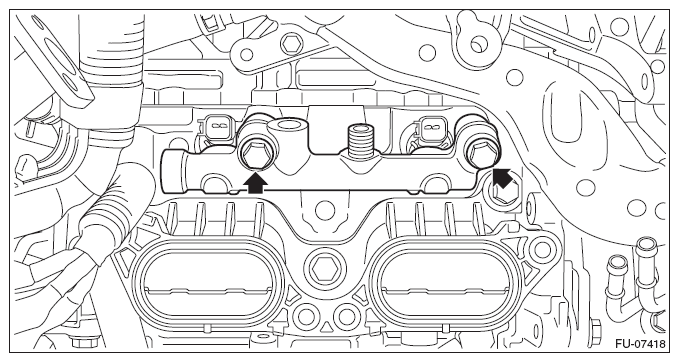

- Tighten the fuel injector pipe RH.
Tightening torque:
19 N.m (1.9 kgf-m, 14.0 ft-lb)

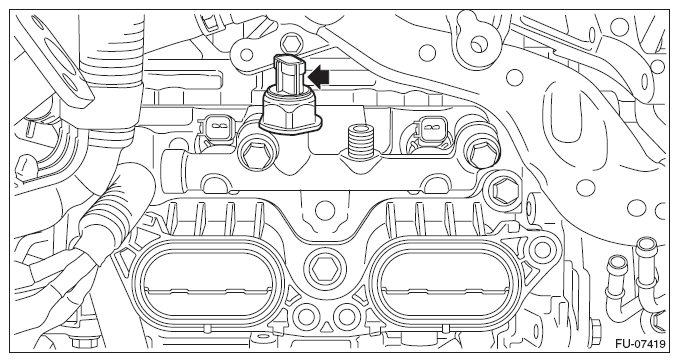

- Temporarily tighten the fuel pressure sensor to the fuel injector pipe RH until it cannot be turned by hand.CAUTION: Always use a new fuel pressure sensor.
- Tighten the fuel pressure sensor.CAUTION:
- Be careful not to spill oil on the screw sections of the fuel pressure sensor and the fuel injector pipe RH.
- Be careful not to let foreign matter enter into the fuel pressure sensor during installation.
- Do not recheck the tightening torque after tightening the fuel pressure sensor with specified torque.
Tightening torque:
46 N.m (4.7 kgf-m, 33.9 ft-lb)
- Install the high-pressure fuel delivery pipe assembly. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>HIGH PRESSURE FUEL DELIVERY PIPE>INSTALLATION>HIGH-PRESSURE FUEL DELIVERY PIPE ASSY .
- Connect the ground terminal to battery sensor. Refer to NOTE>NOTE>BATTERY .
