Engine Wiring Harness: Installation
- Install the harness stay.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

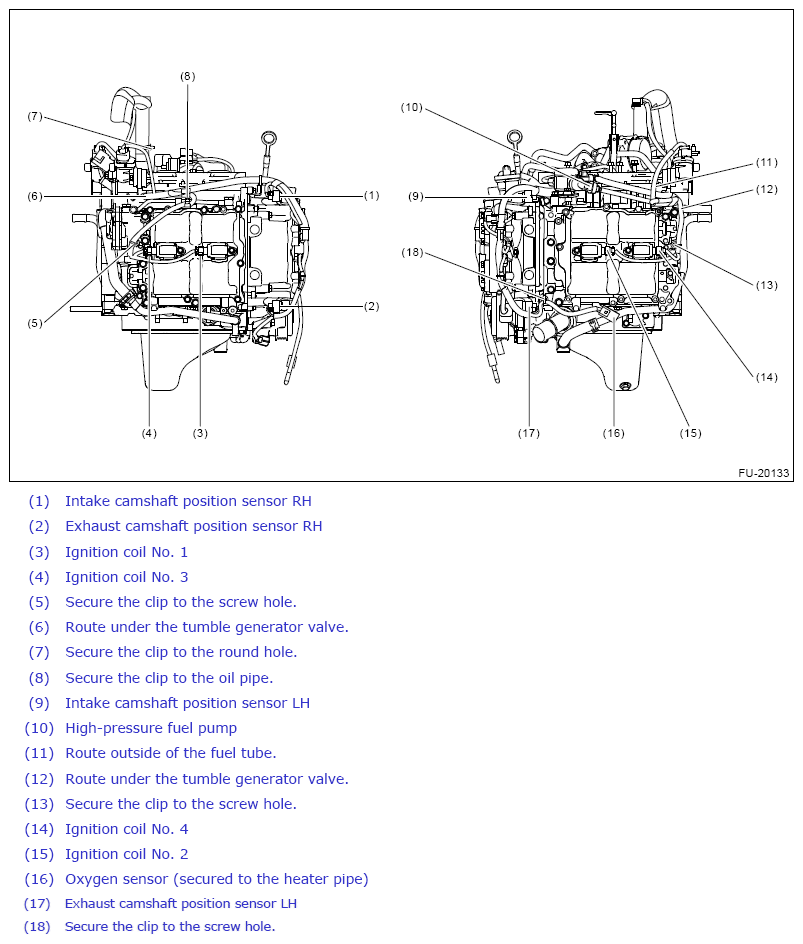

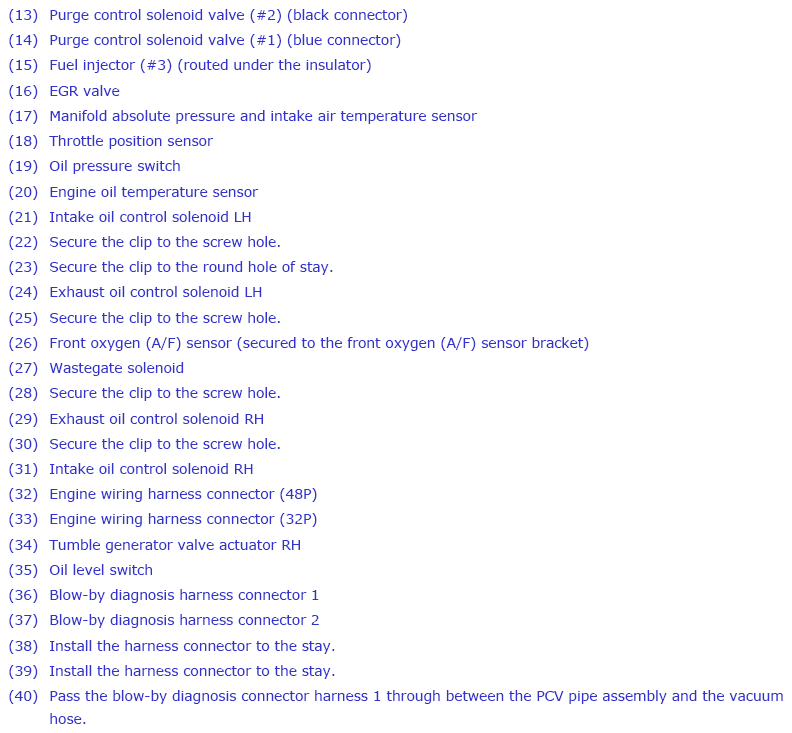

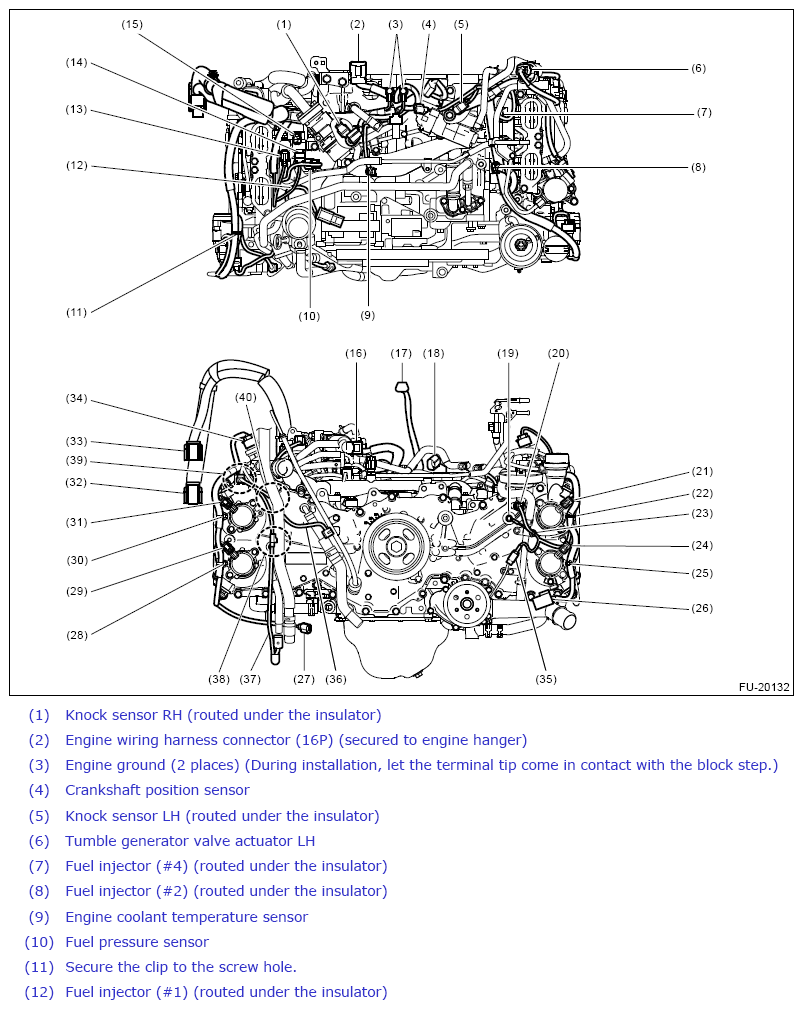

- Set the engine wiring harness to the engine, and connect the connector.NOTE:
- If the clip is damaged, replace it with a new part.
- Before replacing the clip, put an alignment mark (a) on both engine wiring harness and clip to remove the clip, and then align to the alignment mark (a) to attach a new clip to the engine wiring harness.
- Install the engine wiring harness.
Tightening torque:
19 N.m (1.9 kgf-m, 14.0 ft-lb)
- Install the engine control module (ECM). Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>ENGINE CONTROL MODULE (ECM)>INSTALLATION .
- Install the fuel insulator. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>FUEL INSULATOR>INSTALLATION .
- Install the intake manifold. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>INTAKE MANIFOLD>INSTALLATION .
- Connect the ground terminal to battery sensor. Refer to NOTE>NOTE>BATTERY .
