LH Side

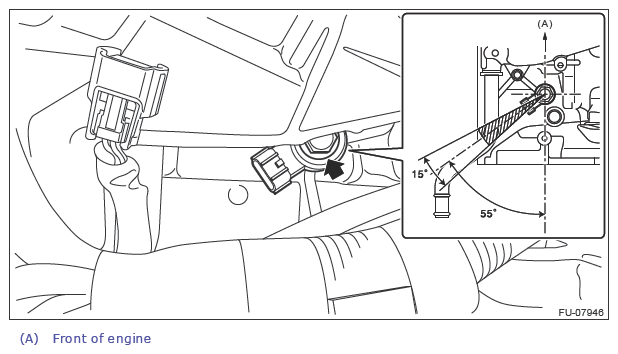

- Install the knock sensor to the cylinder block.NOTE: The knock sensor should be installed so that the center of the connector is positioned at a 47.5 - 62.5° angle relative to the rear of engine.
Tightening torque:
24 N.m (2.4 kgf-m, 17.7 ft-lb)
- Connect the connector to the knock sensor.
- Install the bolts securing the engine wiring harness.
Tightening torque:
19 N.m (1.9 kgf-m, 14.0 ft-lb)
- Install the throttle body. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>THROTTLE BODY>INSTALLATION .
- Install the intercooler. Refer to INTAKE (INDUCTION) (W/O STI)>INTERCOOLER>INSTALLATION .
- Connect the ground terminal to battery sensor. Refer to NOTE>NOTE>BATTERY .
- Install the collector cover. Refer to INTAKE (INDUCTION) (W/O STI)>COLLECTOR COVER>INSTALLATION .
