2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE

Select Lever: Removal

  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .

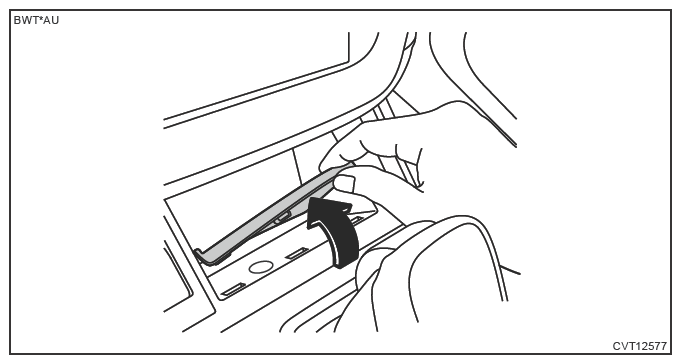

  2. Remove the mat center tray.
    G13620985Courtesy of SUBARU OF AMERICA, INC.

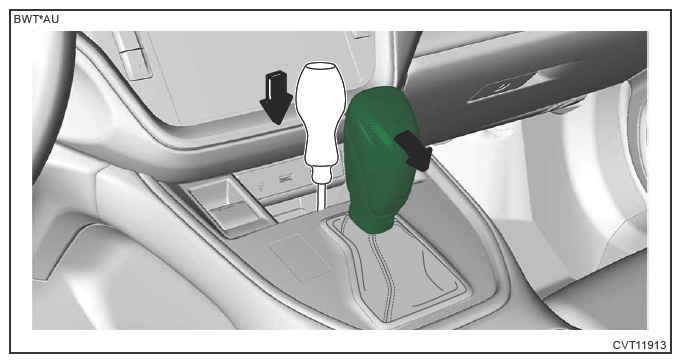

  3. Release the shift lock using a screwdriver, etc. and shift the select lever to the "N" range.
    G13620986Courtesy of SUBARU OF AMERICA, INC.

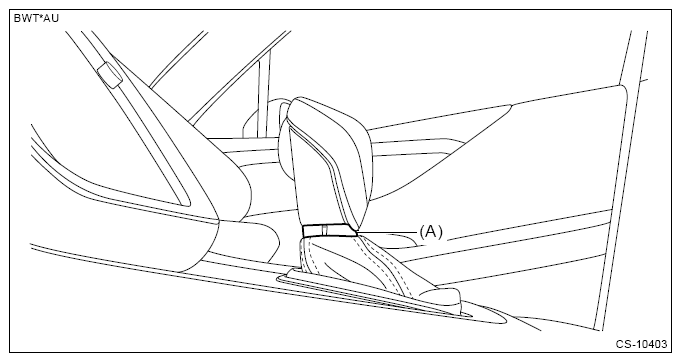

  4. Lower the section (A) of the boot.
    G13621448Courtesy of SUBARU OF AMERICA, INC.

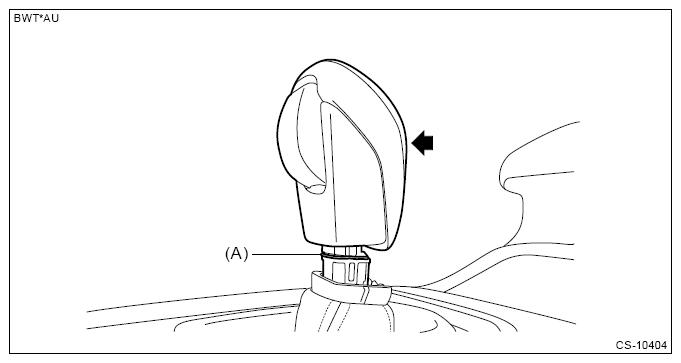

  5. Remove the clamp (A) and remove the grip.
    G13621449Courtesy of SUBARU OF AMERICA, INC.

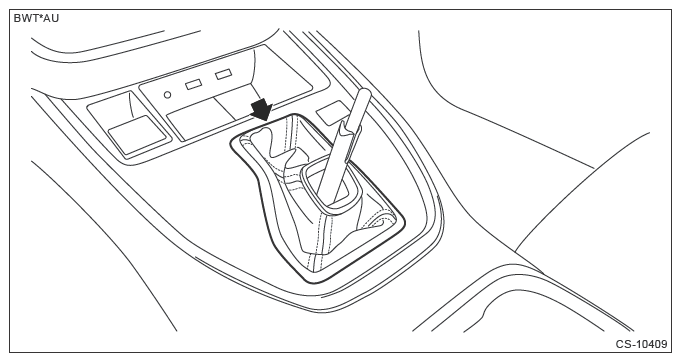

  6. Remove the boot.
    G13621450Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the cover center side RH and the cover center side LH. Refer to EXTERIOR/INTERIOR TRIM>Center Console>REMOVAL .
  8. Remove the duct console center. (Models with rear seat air conditioning) Refer to AIR CONDITIONER>Air Vent Duct>REMOVAL>CONSOLE DUCT>CENTER .
  9. Remove the select cable. Refer to CONTROL SYSTEMS>Select Cable>REMOVAL .

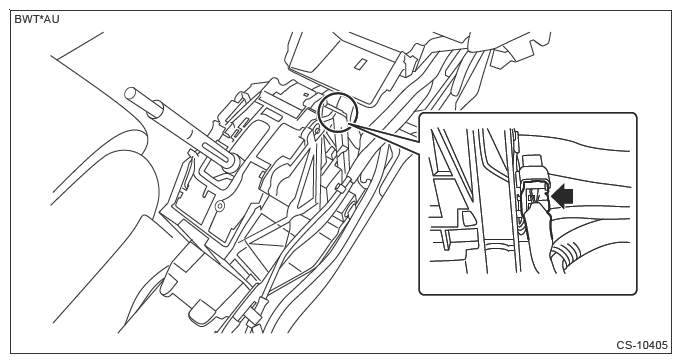

  10. Disconnect the connector.
    G13621451Courtesy of SUBARU OF AMERICA, INC.

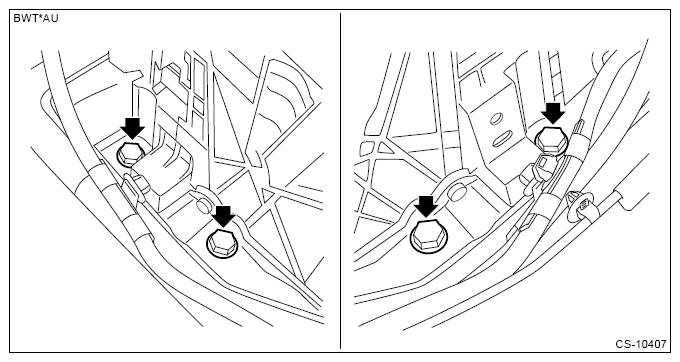

  11. Remove the bolts which secure the select lever.
    G13621452Courtesy of SUBARU OF AMERICA, INC.

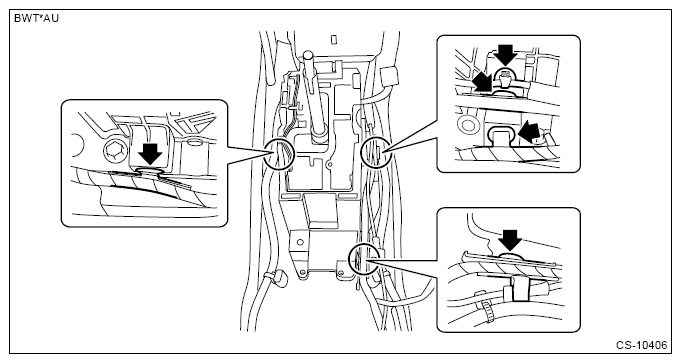

  12. Remove the clip securing the harness, and remove the select lever.
    • Model with CD deck
    G13621453Courtesy of SUBARU OF AMERICA, INC.

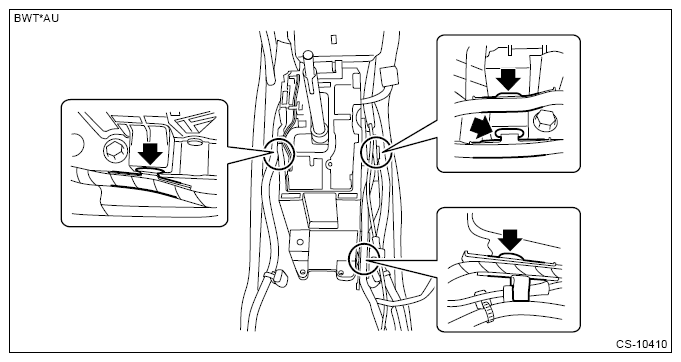

    • Model without CD deck
G13621454Courtesy of SUBARU OF AMERICA, INC.
