Select Cable: Removal
- Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the mat center tray.

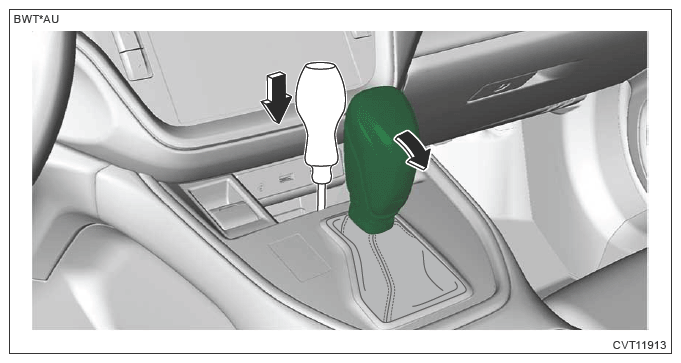

- Release the shift lock using a screwdriver, etc. and shift the select lever to the "N" range.
- Remove the center exhaust cover.
2.5L model:
Refer to EXHAUST (H4DO)>Rear Exhaust Pipe>REMOVAL .
2.4L model:
Refer to EXHAUST (H4DOTC)>Rear Exhaust Pipe>REMOVAL .

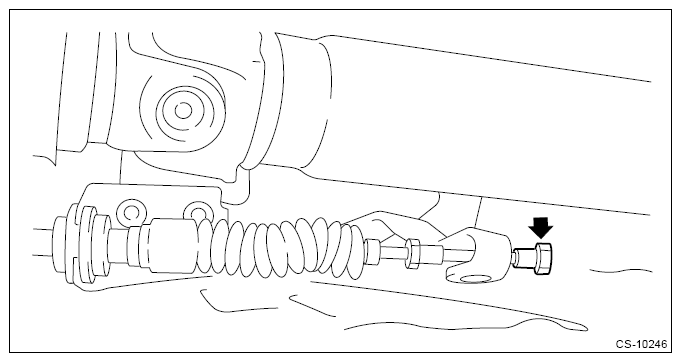

- Disconnect the select cable from the transmission main body.CAUTION: Do not apply excessive load while holding the part (a).
- Remove the adjusting nut (rear).

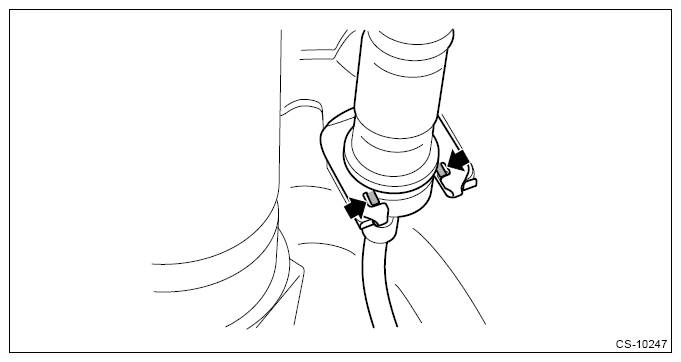

- Raise the claw of clamp and remove the select cable together with the clamp.CAUTION: Do not apply excessive load while holding the part (a).
- Remove the clamp from the select cable.
- Remove the cable plate.
