2020 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE

Select Cable: Installation

  1. Install the cable plate.
    CAUTION: Be careful not to twist the boot.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

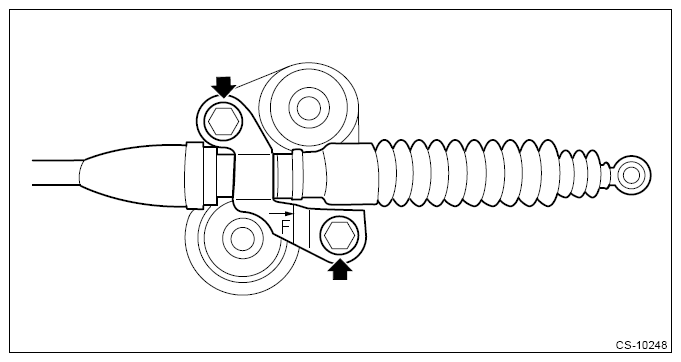

    G13225512Courtesy of SUBARU OF AMERICA, INC.
  2. Set a new clamp on the select lever and secure it by bending the claw.
    NOTE: Set so that the claw faces toward the rear side.
  3. Insert the select cable into the select lever and secure it with the clamp.
    CAUTION: Do not apply excessive load while holding the part (a).

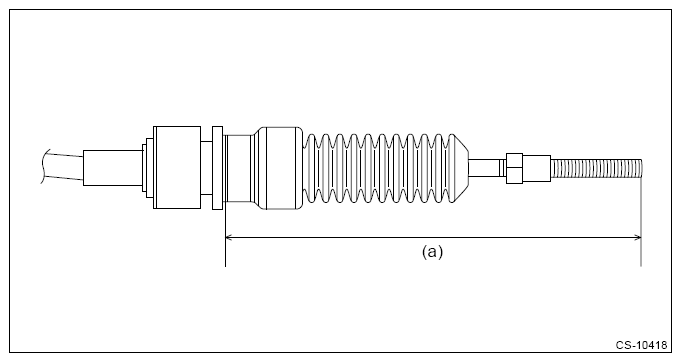

    G13591854Courtesy of SUBARU OF AMERICA, INC.

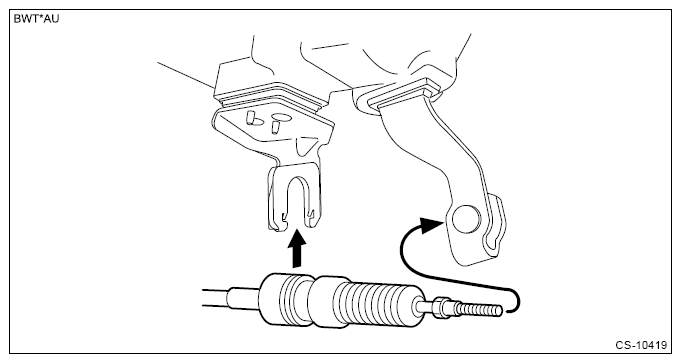

    G13621467Courtesy of SUBARU OF AMERICA, INC.
  4. Temporarily Install the adjusting nut (rear) to the select cable.
  5. Connect the select cable to the transmission main body.
    CAUTION: Do not apply excessive load while holding the part (a).

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

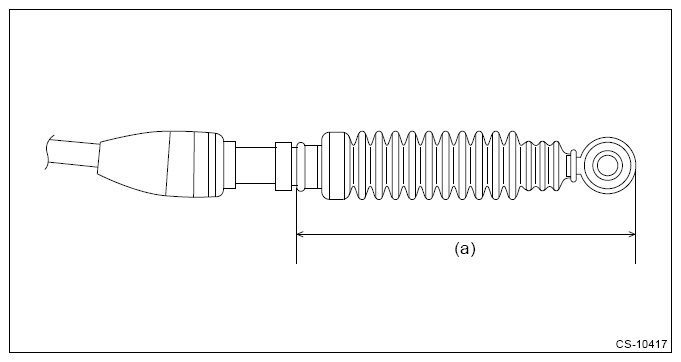

    G13591814Courtesy of SUBARU OF AMERICA, INC.

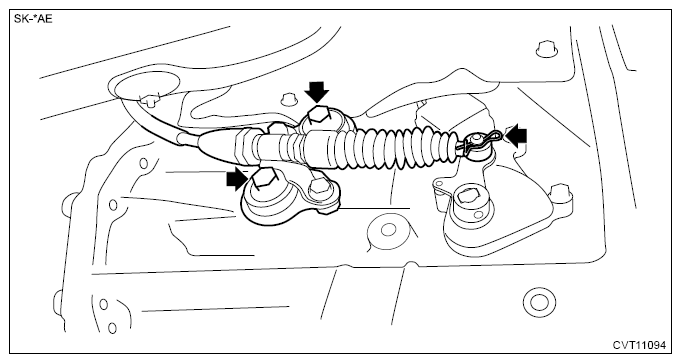

    G13225470Courtesy of SUBARU OF AMERICA, INC.
  6. Adjust the select cable free play. Refer to CONTROL SYSTEMS>Select Cable>ADJUSTMENT .
  7. Install the center exhaust cover.

    2.5L model:

    Refer to EXHAUST (H4DO)>Rear Exhaust Pipe>INSTALLATION .

    2.4L model:

    Refer to EXHAUST (H4DOTC)>Rear Exhaust Pipe>INSTALLATION .

  8. Install the mat center tray.
  9. Shift the select lever to "P range".
  10. Connect the ground terminal to battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
