Select Cable: Adjustment
- Remove the mat center tray.
- Release the shift lock using a screwdriver, etc. and shift the select lever to the "N" range.
- Remove the center exhaust cover.
2.5L model:
Refer to EXHAUST (H4DO)>Rear Exhaust Pipe>REMOVAL .
2.4L model:
Refer to EXHAUST (H4DOTC)>Rear Exhaust Pipe>REMOVAL .

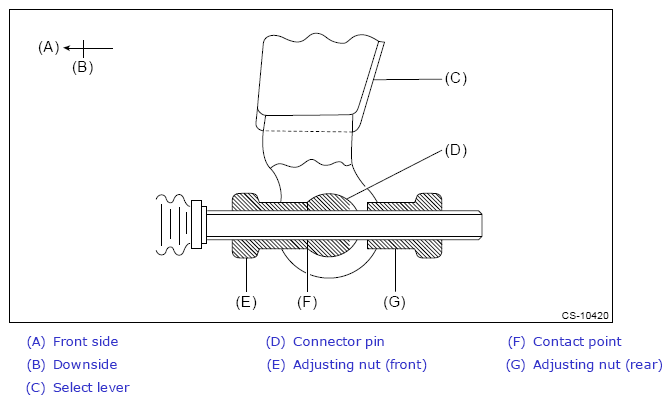

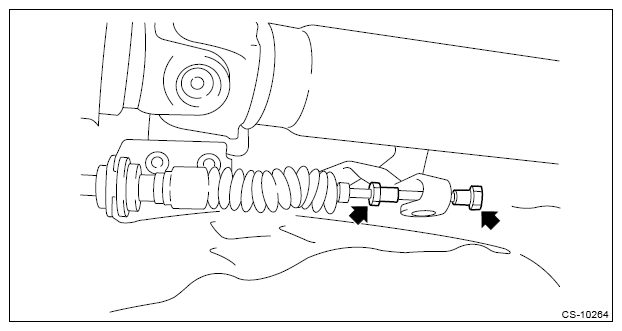

- Loosen the adjusting nut (front) and adjusting nut (rear).
- Turn the adjusting nut (front) until it lightly touches the connector pin.

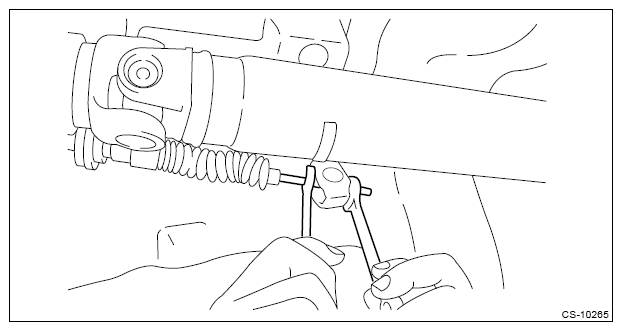

- While holding the adjusting nut (front) in place, tighten the adjusting nut (rear).
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- After the completion of adjustment, confirm that the select lever operates normally at all ranges.
