Front Toe-In
Toe-in: Inspection value
0±3 mm (0±0.12 in)

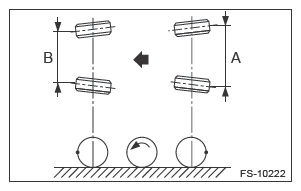

- Set the toe-in gauge in the position at wheel axis center height behind the right and left front tires.
- Place a mark at the center of both left and right tires, and measure distance "A" between the marks.
- Move the vehicle forward to rotate the tires 180°.NOTE: Be sure to rotate the tires in the forward direction.
- Measure the distance "B" between the left and right marks.
Find toe-in using the following calculation:
A - B = Toe-in
