Front Wheel Alignment (Inspection Value)
- Sedan model
| Suspension height (Tolerance: +12 mm-24 mm (+0.47 in-0.94 in )) |
mm (in) | 130 (5.12) |
| Camber (tolerance: ±0°30' Differences between RH and LH: 35' or less) | -0°05' | |
| Caster (referential value) | 5°59' | |
| Steering angle (tolerance: ±1.5°) | Inner wheel | 38.1° |
| Outer wheel | 32.7° | |
| Toe-in | mm (in) | 0±3 (0±0.12) Toe angle (sum of both wheels): 0° ±15' |
| Kingpin angle (referential value) | 13°10' | |
- OUTBACK model
| Suspension height (Tolerance: +12 mm-24 mm (+0.47 in-0.94 in )) | mm (in) | 59 (2.32) |
| Camber (tolerance: ±0°30' Differences between RH and LH: 35' or less) | 0°00' | |
| Caster (referential value) | 5°25' | |
| Steering angle (tolerance: ±1.5°) | Inner wheel | 38.4° |
| Outer wheel | 33.6° | |
| Toe-in | mm (in) | 0±3 (0±0.12) Toe angle (sum of both wheels): 0° ±14' |
| Kingpin angle (referential value) | 11°17' | |

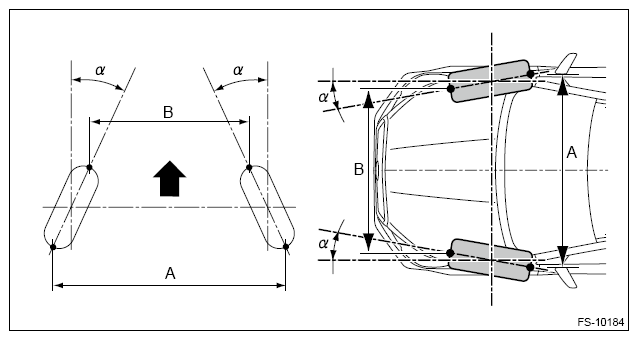

A - B = Positive: Toe-in, Negative: Toe-out
α = Individual toe angles
